Composition optimization, high-temperature stability, and thermal cycling performance of Sc-doped Gd2Zr2O7 thermal barrier coatings: Theoretical and experimental studies

Abstract: Sc was doped into Gd₂Zr₂O₇ for expanding the potential for thermal barrier coating (TBC) applications. The solid solution mechanism of Sc in the Gd₂Zr₂O₇ lattice, and the mechanical and thermophysical properties of the doped Gd2Zr2O7 were systematically studied by the first-principles method, based on which the Sc doping content was optimized. Additionally, Sc-doped Gd₂Zr₂O₇ TBCs with the optimized composition were prepared by air plasma spraying using YSZ as a bottom ceramic coating (Gd-Sc/YSZ TBCs), and their sintering behavior and thermal cycling performance were examined. Results revealed that at low Sc doping levels, Sc has a large tendency to occupy the lattice interstitial sites, and when the doping content is above 11.11 at%, Sc substituting for Gd in the lattice becomes dominant. Among the doped Gd₂Zr₂O₇, the composition with 16.67 at% Sc content has the lowest Pugh’s indicator (G/B) and the highest Poisson ratio (σ) indicative of the highest toughness, and the decreasing trends of Debye temperature and thermal conductivity slow down at this composition. By considering the mechanical and thermophysical properties comprehensively, the Sc doping content was optimized to be 16.67 at%. The fabricated Gd-Sc coatings remain phase and structural stability after sintering at 1400 °C for 100 h. Gd-Sc/YSZ TBCs exhibit excellent thermal shock resistance, which is related to the good thermal match between Gd-Sc and YSZ coatings, and the buffering effect of the YSZ coating during thermal cycling. These results revealed that Sc-doped Gd₂Zr₂O₇ has a high potential for TBC applications, especially for the composition with 16.67 at% Sc content.

Keywords: thermal barrier coating (TBC); first-principles calculation; solid solution mechanism; high-temperature stability; thermal cycling

1 Introduction

Thermal barrier coating (TBC) is a kind of high-temperature protective coating used for aero turbine engine blades, prolonging blade working lifetime and improving thrust to weight ratio and thermal efficiency ^[1–3]. TBCs are generally composed of a ceramic topcoat, thermally grown oxide (TGO), bond coat, and superalloy substrate. The ceramic topcoat generally has the properties of low thermal conductivity, high chemical stability and thermal expansion coefficient (TEC) to meet the requirements of reducing the surface temperature of the substrate and the thermal mismatch between the TBC and the substrate ^[4,5]. The traditional ceramic topcoat material is Y₂O₃ partially stabilized ZrO₂ (YSZ), which has good thermal and mechanical properties ^[6–8]. However, a transition from metastable tetragonal phase (t′) to monoclinic phase (m) occurs when YSZ is in long-term service above 1200 ℃, which is often accompanied by volume expansion, resulting in coating spallation. In addition, YSZ has sintering shrinkage and other problems during the long-term service, which greatly reduces the thermal insulation performance of the coating ^[4,9].

In recent years, rare earth zirconates (RE₂Zr₂O₇, RE = rare earth element) have been widely concerned by many scholars. Because of their low thermal conductivity, high TEC, and good phase stability, they are a series of good candidates for TBC applications. Among RE₂Zr₂O₇, Gd₂Zr₂O₇ has the lowest thermal conductivity (1.2 W/(m·K)) and the highest TEC (10.76×10^-6 K^-1) ^[10–12]. Note that the thermal conductivity and TEC of YSZ are 2.03 W/(m·K) and 11.15×10^-6 K^-1, respectively. Thus, Gd₂Zr₂O₇ has been regarded as one of the most promising TBC materials ^[13,14]. In addition, Gd₂Zr₂O₇ has low oxygen permeability and structural stability at high temperatures ^[15]. However, the mechanical properties of Gd₂Zr₂O₇ are poor, which limits its application.

Gd₂Zr₂O₇ has two crystal structures, namely pyrochlore structure and defect fluorite structure, both of which are face centered cubic space lattice ^[16,17]. Gd³⁺ and Zr⁴⁺ lattice sites can be replaced by other ions, and some small ions could also enter the interstitial sites. Due to the difference in size, mass, and force between doping atoms and Gd³⁺, phonon scattering in the doped Gd₂Zr₂O₇ lattice could be enhanced. Therefore, the thermal conductivity of Gd₂Zr₂O₇ can be further reduced by selectively doping other ions in the Gd₂Zr₂O₇ lattice, and other thermophysical and mechanical properties can also be improved. It is reported that the TEC of RE₂Zr₂O₇ increases with the decrease of RE³⁺ (rare earth) size ^[18]. Zhang et al. ^[13] found that the fracture toughness of Gd₂Zr₂O₇ can be increased by doping Yb³⁺. Lee et al. ^[19] found that the doping Y³⁺ can significantly improve hardness, elastic modulus, and insulation performance of Gd₂Zr₂O₇. These results show that doping small RE³⁺ in Gd₂Zr₂O₇ is beneficial to improve toughness, hardness, elastic modulus, and thermophysical properties. Among the RE³⁺, Sc³⁺ has the smallest radius. Our previous research results showed that the addition of Sc³⁺ can increase the fracture toughness and TEC of Gd₂Zr₂O₇ ^[20–22]. However, in previous studies, the doping amount of Sc was not optimized, and the solid solution mechanism of Sc in Gd₂Zr₂O₇ lattice was not clarified theoretically.

Thermal shock resistance behavior, sintering resistance, and phase stability of TBCs at high temperature are of great theoretical significance for the optimization design of aeroengine. RE₂Zr₂O₇ coating is resistant to sintering at high temperatures, and is not easy to undergo phase transformation, but its fracture toughness and TEC are relatively low, which would lead to poor thermal shock lifetime. Karabaş ^[23] found that the thermal cycle life of La₂Zr₂O₇ can be improved by doping rare earth elements. Zhang et al. ^[24] studied the high-temperature stability and thermal shock resistance of (Gd_0.9Yb_0.1)₂Zr₂O₇ TBCs, and found that they can still maintain good phase stability at 1600 ℃, and have excellent thermal cycle performance. Other studies have shown that the design of double- ceramic-layer (DCL) TBC structure can also improve the thermal shock lifetime, and YSZ coating can effectively alleviate the thermal stress at high temperature ^[25–27]. According to the above reports, RE₂Zr₂O₇ materials have good phase stability at high temperatures, and the thermal shock resistance can be improved by doping rare earth elements.

The first-principles calculation method based on density functional theory has developed into an important method to predict the properties of materials in recent years, and has been used by many scholars to study the effect of rare-earth doping on the properties of rare earth zirconate ^{[11,12,28,29]}. Li et al. ^[29] found by first-principles calculation that doping Sm³⁺ in La₂Zr₂O₇ could improve the mechanical and thermal properties, and LaSmZr₂O₇ has the optimal mechanical and thermal properties when the Sm content is 50 at%. Zhao et al. ^[11] used density functional theory and found that the Young’s modulus, Debye temperature, and thermal conductivity of Gd₂Zr₂O₇ decrease with the Th content. Zhao et al. ^[12] used first-principles calculation method, and found that the Young’s modulus of Gd₂Zr₂O₇ decreases by 22.2–59.9 GPa with the Ce content, and the thermal conductivity decreases by 21% after completely replacing Ce at Zr site. However, the above doping models were established by replacing the RE-site or Zr-site in the pyrochlore lattice, and the interstitial model is not studied. Additionally, the solid solution mechanisms of doped atoms have not been analyzed completely.

Sc has been proved to be a very effective dopant, which can significantly improve the mechanical and thermal properties of Gd₂Zr₂O₇, but its solution mechanism and optimal doping amount are still unclear. For TBC’s application, the thermal shock and sintering behavior need to be investigated. Therefore, this study intends to clarify the solution mechanism of Sc-doped Gd₂Zr₂O₇ by the first-principles method, optimize the Sc doping amount by considering the mechanical and thermophysical properties, and investigate the sintering and thermal shock behavior of Sc-doped Gd₂Zr₂O₇ TBCs.

2 Theoretical calculation methods and experimental procedure

2. 1 Theoretical calculation method

The theoretical calculations were carried out by the Vienna Ab initio Simulation Package (VASP) software based on density functional theory (DFT) ^[30]. The projector augmented wave (PAW) method was used to describe the interaction between electrons and ions, and the generalized gradient approximation (GGA) was used to describe the electron exchange correlation potential ^[31,32]. In all calculations, the plane wave cutoff energy was set to 500 eV and the k-point is 3 × 3 × 3. The convergence criterion of structural optimization was that the stress of each atom was less than 0.01 eV/atom. In this work, Gd₂Zr₂O₇ pyrochlore structure was first established, and then several possible models of Sc-doped Gd₂Zr₂O₇ solid solution was examined. For the strong interactions caused by the 4f electrons of Gd, we did not adopt the Hubbard U correction method. The 4f electrons are regarded as core states, because 4f electrons do not affect the calculated results of mechanical and thermodynamic properties ^[33,34].

In order to elucidate the solid solution mechanism of Sc atom in Gd2Zr2O7 lattice, the defect formation energies of different doping models were calculated based on Eq. (1) ^[35]:

where E_tot[defect] is the energy of the crystal after doping, E_bulk[perfect] is the energy of an undoped perfect crystal, ni is the number of doping atom i (if this atom is added to the system, n > 0, and if this atom is removed from the system, n < 0), and μ is the chemical potential of the corresponding atom.

After calculating the mechanical property parameters, the thermophysical properties were obtained, including longitudinal sound velocity vl, transverse sound velocity vt, average sound velocity vm, Debye temperature Θ, and minimum thermal conductivity kmin. The formulas used are as Eqs. (2)–(5) ^[11,12]:

The minimum thermal conductivity is calculated by Clarke’s model and Cahill’s model with Eqs. (6) and (7), respectively ^[11,12]:

where B is the bulk modulus, G is the shear modulus, E is the Young’s modulus, ρ is the density, n is the number of atoms in the crystal, V_m is the volume of unit cell, h is the Planck constant, N_A is the Avogadro constant, k_B is the Boltzmann constant, M is the molar mass, and M_a is the average mass per atom.

2. 2 Experimental procedure

Sc-doped Gd₂Zr₂O₇ (Gd–Sc) powders were prepared by a chemical precipitation and calcination method ^[36,37]. Firstly, Gd₂O₃, Sc₂O₃, and ZrOCl₂·8H₂O (99.9%, 1–3 μm; Jiangtian Chemical Reagents Co., Ltd., Tianjin, China) were weighed according to the molar ratio of 5:1:12. Gd₂O₃ and Sc₂O₃ were dissolved into excessive concentrated nitric acid (65%; Jiangtian Chemical Reagents Co., Ltd., Tianjin, China) to obtain Gd(NO₃)₃ and Sc(NO₃)₃ respectively, and ZrOCl₂·8H₂O was dissolved in deionized water. Then the solutions were mixed evenly and slowly dripped into excessive ammonia water with mechanically stirring and ultrasonic oscillated to obtain white precipitation, which was filtered and washed several times with deionized water and anhydrous ethanol until pH = 7 was reached. The obtained powders were dried at 120 ℃ for 10 h and calcined at 900 ℃ for 5 h for crystallization. Gd–Sc and YSZ powders were agglomerated into microscopic particles (38–92 μm) by a spray drying method before spraying (LGZ-3, Wuxi Dongsheng Spray-granulating and Drying Equipment Plant, Wuxi, China). The parameters of spray drying were as follows: The inlet and outlet temperatures were 240 and 100 ℃, respectively, and the feed rate was 100 g/min.

Gd–Sc coating and Gd–Sc/YSZ double-ceramic-layer coating (DCL) TBCs were produced by air plasma spraying (APS; Metro 7 M). The spraying parameters are shown in Table 1. The bond coat and the substrate were NiCoCrAlY (53–91 μm; Shenyang Liming Aero Engine Group Corporation Ltd., Shenyang, China) and Ni-based superalloy (DZ125, Shenyang Liming Aero Engine Group Corporation Ltd., Shenyang, China), respectively. Their compositions are listed in Table 2. When preparing the double-ceramic-layer coating, YSZ coating was first sprayed on the bond coat, followed by the Gd–Sc coating. The preparation process of Gd–Sc/YSZ coating for the heat treatment experiment was as follows: The coating was prepared on a graphite substrate, and then the substrate was removed by heating at 800 ℃.

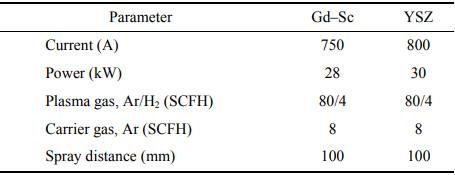

Table 1 Plasma spray parameters of Gd–Sc/YSZ coatings

Table 2 Composition of NiCoCrAlY and Ni-based superalloy (DZ125)   (Unit: wt%)

Thermal shock tests were conducted by a water quenching method. When the temperature of the furnace (SX-G05165, Tianjin Zhonghuan Experimental Electric Furnace Co., Ltd., Tianjin, China) was reached 1050 ℃, Gd–Sc TBCs and Gd–Sc/YSZ DCL TBCs were put into the furnace and held for 10 min, followed by putting it into deionized water to room temperature. This process was defined as one thermal cycle, and the termination condition was that the spallation area of the coating surface exceeds 20%. The sintering behavior of Gd–Sc/YSZ coatings was investigated at 1400 ℃ in a furnace (SK-G08163, Tianjin Zhonghuan Experimental Electric Furnace Co., Ltd., China) for 20, 50, 100, and 200 h. The porosity of the heat-treated coating was obtained by the microstructure image processing (MIP) software.

Phase compositions of samples were determined by an X-ray diffractometer (Bruker D8 Advanced, Germany) using Cu Kα radiation. The parameters were as follows: The voltage and current was 40 kV and 40 mA respectively, and the scanning range of 2θ was 20°–80° with a rate of 6 (°)/min. The high-temperature stability of Gd–Sc powders was examined by STA449C thermal analyzer, with the parameters as follows: The heating rate was 10 K/min, and the temperature range was from room temperature to 1450 ℃. The surface morphologies, cross-sectional microstructures, and composition analysis were observed by scanning electron microscope (SEM; Nanosem 430, FEI, USA) equipped with energy dispersive spectroscopy (EDS; IE 350).

3 Results and discussion

3. 1 Solid solution mechanism of Sc in Gd₂Zr₂O₇ lattice

The optimized Gd₂Zr₂O₇ model is shown in Fig. 1. The structure exhibits a typical pyrochlore structure with 16 Gd, 16 Zr, and 56 O atoms. In the lattice, Gd occupies 16d (0.5, 0.5, 0.5), Zr occupies 16c (0, 0, 0), and the O has two types of sites, i.e., 48f (x, 0.125, 0.125) and 8b (0.375, 0.375, 0.375). In addition, there is an unoccupied oxygen vacancy of 8a (0.125, 0.125, 0.125) in Gd₂Zr₂O₇ lattice.

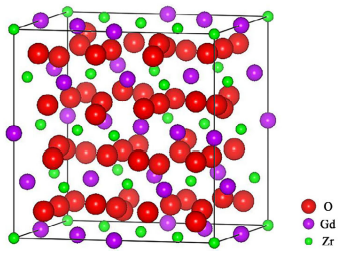

Fig. 1 Crystal structure of Gd₂Zr₂O₇.

The two most important parameters for describing the structure of pyrochlore are the lattice constant a₀ and the atomic coordinate parameter x_O-48f. The x_O-48f is an important parameter for the degree of structural disorder, with a value between 0.3125 and 0.375 ^[38]. When x_O-48f = 0.3125, it is an ideal pyrochlore structure, while when x_O-48f = 0.375, the system exhibits a disordered fluorite structure, that is, a larger value of x_O-48f means a more disordered lattice structure ^[39]. After completing structural relaxation, the results of a₀, x_O-48f, and density of the Gd₂Zr₂O₇ model are obtained as shown in Table 3, which are 10.600 Å, 0.3386, and 6.79 g/cm³, respectively, showing agreement with the published values ^[40–43]. The above part demonstrates the reliability of our calculation results.

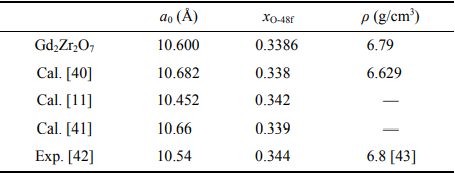

Table 3 Structural parameters of Gd₂Zr₂O₇

In Gd₂Zr₂O₇ lattice, the doped Sc has two possible sites, i.e., interstitial site and substitution for Gd. In order to determine the solid solution mechanism of Sc in the lattice, we established models with one Sc atom, two Sc atoms, three Sc atoms, and four Sc atoms, which were named Gd_Sc-1-inter and Gd_Sc-1-sub, Gd_Sc-2-inter and Gd_{Sc-2-1-inter+1-sub}, Gd_Sc-3-inter and Gd_{Sc-3-2-inter+1-sub}, and Gd_{Sc-4-2-inter+2-sub}, respectively, as listed in Table 4 and shown in Fig. 2. The subscripts of “inter” and “sub” stand for a Sc atom occupying an interstitial site and substituting for Gd, respectively. The interstitial sites are 32e (0.25, 0.25, 0.25), which is the most stable interstitial site in pyrochlore structure ^[35]. The Gd site farthest from the 32e is selected as the substitution site.

Table 4 Lattice constants and formation energy calculations of Sc-doped Gd₂Zr₂O₇

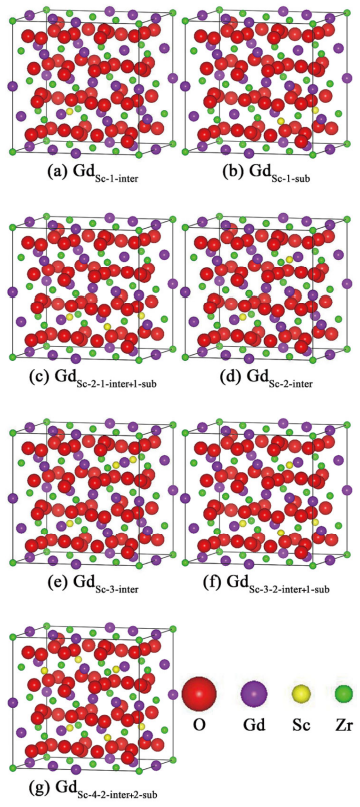

Fig. 2 Solid solution mode of Sc in Gd₂Zr₂O₇ lattice with different doping contents.

Defect formation energy is an important parameter to determine the mechanism of point defect formation, which has been widely used by many scholars to clarify the solid solution mechanism ^[35,44–46]. The smaller the value, the easier the doped atom can enter the lattice ^[35,44–46]. The calculated formation energy values of above models are shown in Table 4. According to the calculation results, the solution mechanisms of Sc atoms in the Gd₂Zr₂O₇ lattice are analyzed as follows.

When the Sc content is low, Sc atoms mainly enter the interstitial sites of the lattice, because the formation energy of Gd_Sc-1-inter (0.141) is obviously smaller than that of Gd_Sc-1-sub (1.269), which is also consistent with our previous experimental results ^[20]. It is found that the formation energy of Gd_Sc-2-inter is slightly lower than that of Gd_{Sc-2-1-inter+1-sub}, which indicates that there may be a tendency to substitute the Gd-site atoms at this Sc content. With the increase of Sc content, we found that the formation of Gd_Sc-3-inter significantly increased, which means that the Gd₂Zr₂O₇ lattice has no ability to accommodate more interstitial Sc atoms; in the case of Gd_{Sc-3-2-inter+1-sub} model, the formation energy decreases significantly, suggesting that substitution doping is dominant at this composition.

The calculated lattice constant values are also listed in Table 4, and shown in Fig. 3 with variation of the Sc contents. The lattice constant increases to 10.646 Å when the Sc content is below 11.11 at%, followed by a decrease. The increase is due to the dominant of interstitial Sc atoms causing lattice expansion, and the decrease could be attributed to the smaller Sc substitution for Gd. Note that when the Sc content is above 5.88 at%, the increase rate of lattice constant is reduced. This indicates that some Sc atoms have some possibility to substitute for Gd, offsetting the lattice expansion, which agrees with the formation energy calculation results. As a result, one could conclude that the interstitial Sc concentration in Gd₂Zr₂O₇ lattice might be less than 11.11 at%, which is consistent with our previous experimental results ^[18].

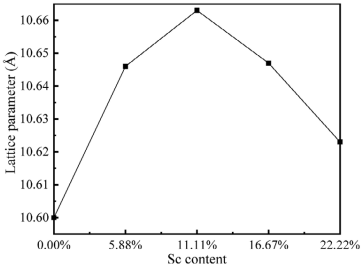

Fig. 3 Variations of lattice constant with the Sc content.

According to the change trend of the defect formation energy and lattice constant, the solid solution mechanism of Sc in Gd₂Zr₂O₇ lattice might be clear: When the Sc content is 5.88 at%, interstitial doping is dominant; when the Sc content is 5.88–11.11 at%, the interstitial Sc atoms reach saturation and there is a tendency to replace Gd atoms, after which the substitution doping begins to dominate gradually.

3. 2 Mechanical and thermophysical properties of Sc-doped Gd₂Zr₂O₇

Based on the fully optimized model, we calculated the mechanical properties of Sc-doped Gd₂Zr₂O₇ with Gd_Sc-1-inter, Gd_Sc-2-inter, Gd_{Sc-3-2-inter+1-sub}, and Gd_{Sc-4-2-inter+2-sub}, including elastic constants, bulk modulus B, shear modulus G, and Young’s modulus E. For cubic system, there are three independent elastic constants C₁₁, C₁₂, and C₄₄. The calculated results are shown in Table 5. For Gd₂Zr₂O₇, there are some differences between our calculated results and values in the literature ^[12,34]. The reason may be that the pseudopotential we used is different from that in the literature. For the ceramic system, we did not consider the spin polarization in the calculation process, while the results in the literature considered it ^[12,34]. However, for the bulk elastic modulus B, shear elastic modulus G, and Young’s elastic modulus E, our calculated results are in good agreement with the experimental values, which reveals the reliability of our calculated results.

The variation trends of elastic constant and elastic modulus with the Sc content are shown in Fig. 4, and the calculation results are listed in Table 5. It can be seen from Fig. 4(a) that C₁₁, C₁₂, and C₄₄ all decrease in different degrees after doping Sc atoms. This phenomenon suggests that the addition of Sc is beneficial to improve the mechanical properties of Gd₂Zr₂O₇. For the cubic system, the elastic constants C₁₁, C₁₂, and C₄₄ must meet the following three criteria to be mechanically stable: C₁₁ + 2C₁₂ > 0; C₄₄ > 0; C₁₁ − C₁₂ > 0 ^[47]. According to the calculation results in Table 5, all models are satisfied, which indicates that the Sc-doped Gd₂Zr₂O₇ systems are all mechanically stable. In order to optimize the amount of Sc doping, we calculated the elastic modulus based on the result of the elastic constant, and the formula is as follows: B = (C₁₁ + 2C₁₂)/3, G = {(C₁₁ − C₁₂ + 3C₄₄)/5 + 5(C₁₁ − C₁₂)C₄₄/[4C₄₄ + 3(C₁₁ − C₁₂)]}/2, E = 9BG/(3B + G) ^[11,12].

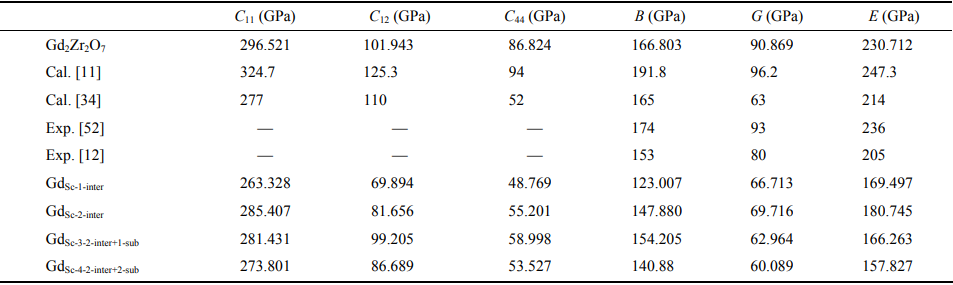

Table 5 Elastic constant and elastic modulus of Sc-doped Gd₂Zr₂O₇

Figure 4(b) shows the bulk modulus B, shear modulus G, and Young’s modulus E. With the increase of the content, bulk modulus B first decreases and then increases slowly. The shear modulus G decreases gently with the increase of Sc content, which is consistent with the research results of Th-doped Gd₂Zr₂O₇, Ti-doped Gd₂Zr₂O₇, and La-doped Gd₂Zr₂O₇ ^[11,12]. Note that doping Sc atom could reduce Young’s modulus E by 50–73 GPa. This is because doping smaller Sc atom into Gd₂Zr₂O₇ lattice introduces size and coupling force mismatch, which causes fluctuation of strain field and lattice softening, resulting in a significant decrease of Young’s modulus ^[48]. For TBC applications, a low Young’s modulus is desirable, which means large strain tolerance of coatings beneficial for thermal shock resistance of TBCs ^[49]. According to the results of elastic modulus, one could be found that the decreasing trends of Young’s modulus E and shear modulus G slow down after 16.67 at% Sc content. Therefore, based on the calculation results of elastic modulus, the Sc content of 16.67 at% is the best.

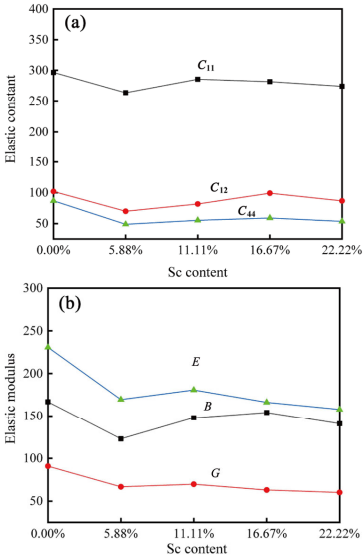

Fig. 4 Variations of (a) elastic constants C₁₁, C₁₂, C₄₄, and (b) bulk modulus B, shear modulus G, and Young’s modulus E with the Sc content.

The calculated results of Pugh’s indicator (G/B) and Poisson ratios (σ) of Sc-doped Gd₂Zr₂O₇ with GdSc-1-inter, Gd_Sc-2-inter, Gd_{Sc-3-2-inter+1-sub}, and G_{dSc-4-2-inter+2-sub} are listed in Table 6. G/B is an important index to describe brittle toughness of materials, with a critical value of 0.5, above which the material exhibits brittleness ^[50]. In other words, the lower the G/B is, the better toughness the material has. Poisson’s ratio σ is also an important parameter to describe the toughness of materials. For ductile materials, the Poisson’s ratio is 0.33, while for strong covalent crystals, the Poisson᾽s ratio is 0.1 ^[51]. In other words, a higher Poisson’s ratio means better toughness of materials. The calculated G/B and Poisson’s ratio of Gd₂Zr₂O₇ are 0.545 and 0.269 respectively, which are in good agreement with the literature values ^[11,52]. Figure 5 shows the variation of Pugh’s indicator (G/B) and Poisson’s ratio (σ) with the Sc content. With the increase of the Sc content, G/B decreases first followed by an increase when the doping content reaches 16.67 at%, while σ increases first and then shows a decrease. At a Sc doping level of 16.67 at%, G/B has the lowest value of 0.408, and σ has the highest value of 0.32, suggesting that the material with this composition has the highest toughness.

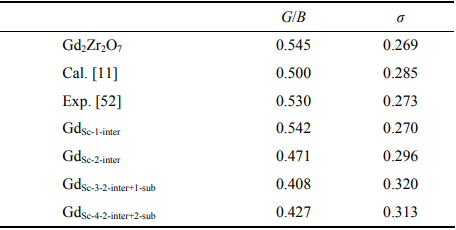

Table 6 Pugh’s indicator (G/B) and Poisson’s ratio (σ) of Sc-doped Gd₂Zr₂O₇

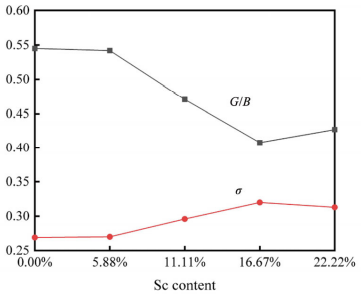

Fig. 5 Variations of Pugh’s indicator (G/B) and Poisson’s ratio (σ) with the Sc content.

The thermophysical properties of different Sc-doped Gd₂Zr₂O₇ models are listed in Table 7. The calculated Debye temperature of Gd₂Zr₂O₇ is 508.506 K, which is close to the calculated value of 520.7 K by Zhao et al.^[11] and the experimental 513.4 K by Shimamura et al.^[52]. After doping Sc atoms into Gd₂Zr₂O₇, longitudinal sound velocity v_l, transverse sound velocity v_t, and average sound velocity v_m all decrease, which leads to the decrease of Debye temperature. The variation of Debye temperature Θ and thermal conductivity with the Sc content is shown in Fig. 6. 5.88 at% Sc doping into Gd₂Zr₂O₇ lattice reduces the Debye temperature by 72 K, while there is a slight increase in the Debye temperature when the doping content reaches 11.11 at%, and then it decreases again. Note that when Sc content exceeds 16.67 at%, the decreasing trend of Debye temperature slows down. Debye temperature of a material can reflect its TEC ^[53]. A low Debye temperature suggests weak interaction between atoms in the lattice, which indicates a high coefficient of thermal expansion ^[12]. For TBC materials, a high coefficient of thermal expansion benefits to reduce the thermal mismatch between the coating and substrate.

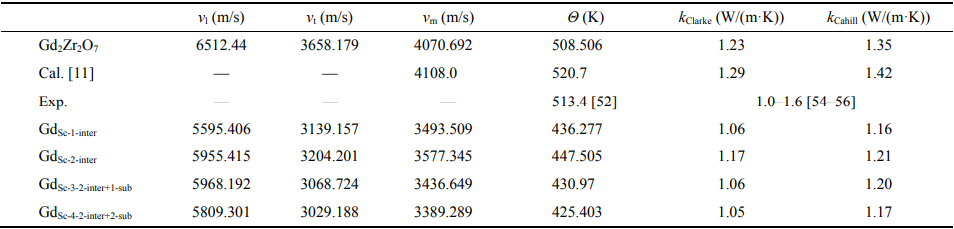

Table 7 Thermophysical properties of Sc-doped Gd₂Zr₂O₇

The minimum thermal conductivities were calculated based on Cahill’s model and Clarke’s model as listed in Table 7, which are present in Fig. 6(b) as the function of the Sc content. The calculated thermal conductivities of Gd₂Zr₂O₇ are 1.23 W/(m·K) by Clarke’s model and 1.35 W/(m·K) by Cahill’s model, which are in agreement with the calculated value of 1.29 and 1.35 W/(m·K) by Zhao et al. ^[11,12]. Our calculated results are also within the experimental results range of 1.0–1.6 W/(m·K) ^[54–56]. It can be seen from Fig. 6(b) that the minimum thermal conductivity calculated by Cahill’s model is slightly higher than that obtained Clarke’s model, which is also in line with the calculation trend of other scholars ^[11,12]. The reason can be attributed to the consideration of phonon spectrum in Cahill’s model while the lacking contribution of optical phonon in Clarke’s model ^[57]. Comparing curves in Figs. 6(a) and 6(b), it could be found that the variation trend of thermal conductivity is similar with that of Debye temperature with the increase of Sc content. Based on Clarke’s model, which is more suitable for insulators ^[58,59], one could be found that the decreasing trend slows down when the Sc content exceed 16.67 at%. It can be seen from the variation of Debye temperature and thermal conductivity that too much Sc doping (> 16.67 at%) has no obvious effect on increasing TEC and decreasing thermal conductivity.

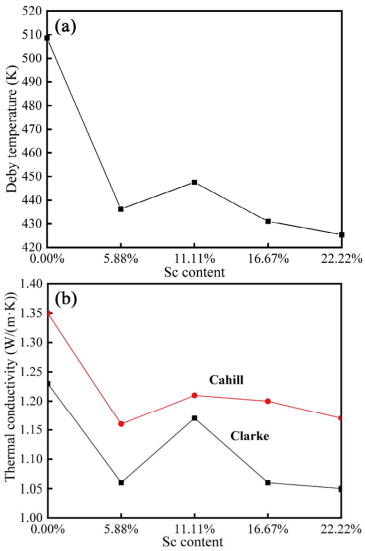

Fig. 6 Variation of (a) Debye temperature Θ and (b) thermal conductivity with the Sc content.

The minimum thermal conductivity could be used as an approximation of the real thermal conductivity, which is related to the phonon scattering ^[24,60,61]. When the Sc content is 5.88 at%, Sc atoms mainly enter the interstitial sites of Gd₂Zr₂O₇, which enhances phonon scattering. However, in order to balance the charge, oxygen vacancies are consumed, which would reduce the phonon scattering. Note that the thermal conductivity is still greatly reduced, which indicates that interstitial doping atoms play a significant role in enhancing phonon scattering. With the increase of Sc content, Gd³⁺ is gradually replaced by Sc³⁺. Due to that the smaller Sc³⁺ replaces Gd³⁺, Sc³⁺ is loosely bound in an oversized atomic cage and does not easily vibrate with other phonons, acting like a local “rattler”, which enhances the scattering of phonons and leads to a decrease in the thermal conductivity. However, its enhancement effect is not as significant as that brought by interstitial atoms, which leads to a slow decline in thermal conductivity ^[62].

According to the theoretical calculation, the mechanical and thermophysical properties of Gd₂Zr₂O₇ can be designed by Sc doping. When the Sc content is less than 11.11 at%, the interstitial doping of Sc atoms is dominant. Then, the Gd³⁺ sites would be gradually replaced by Sc³⁺ with the increase of Sc content. Young’s modulus decreases by 50–64 GPa after doping Sc atom, which benefits the thermal shock resistance and high-temperature stability of the coating. When the content of Sc exceeds 16.67 at%, the decreasing trends of Young’s modulus and shear modulus slow down. The toughness of the material can be improved obviously by doping Sc atoms, and when Sc content is 16.67 at%, the toughness reaches the optimum. Similarly, the downward trends of Debye temperature and thermal conductivity begin to slow down after Sc content exceeds 16.67 at%. Therefore, when the content of Sc is about 16.67 at%, all aspects of the performance are the most suitable.

3. 3 Preparation of Gd–Sc TBCs and their sintering behavior

The XRD patterns of the prepared Gd–Sc powders, Gd–Sc TBCs, and Gd–Sc/YSZ DCL TBCs (Sc content is 16.67 at%) are shown in Fig. 7(a). All the patterns exhibit similar appearance, which have diffraction peaks ascribed to disordered defect fluorite. This indicates that during plasma spraying processes, Gd–Sc powders keep phase stability, and our spraying parameters are suitable. Figure 7(b) shows the DSC curve of Gd–Sc powders at a temperature range of 25–1450 ℃. There is an endothermic peak at 388 ℃, which may be caused by evaporative heat absorption of crystalline water. No other heat absorption or exothermic peaks can be observed during the whole heating process, which indicates that Gd–Sc can maintain good high-temperature stability up to 1450 ℃. This is beneficial for Gd–Sc coatings used at elevated temperatures.

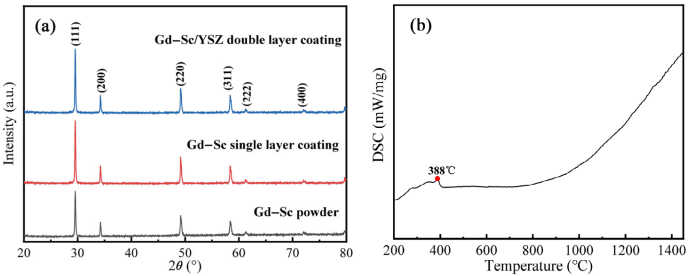

Fig. 7 (a) XRD patterns of Gd–Sc powders and coatings, and (b) DSC curve of Gd–Sc powders.

Figure 8(a) shows the surface morphology of Gd–Sc spraying powders. The powders exhibit a spherical appearance, and the size is 38–76 μm. Cross-sectional microstructures of Gd–Sc TBCs and Gd–Sc/YSZ DCL TBCs are shown in Figs. 8(b) and 8(c), respectively. The Gd–Sc coating and YSZ coating show a typical layered structure, and both types of TBCs have integral interface, where there are no obvious defects such as gaps and cracks. In Gd–Sc TBCs, the thickness of the Gd–Sc coating is ~120 μm. In Gd–Sc/YSZ DCL TBCs, the thickness of Gd–Sc coating is ~80 μm and that of YSZ coating is ~150 μm.

Fig. 8 (a) Surface morphology of Gd–Sc spraying powders, and cross-sectional microstructures of (b) Gd–Sc TBC and (c) Gd–Sc/YSZ DCL TBC.

The XRD patterns of Gd–Sc/YSZ coatings after heat treatment tests at 1400 ℃ are shown in Fig. 9. It can be seen that the patterns of the heat-treated coatings are similar to that of the as-fabricated coating except that the peaks become sharp, which indicates the crystallization degree of the coatings increases after heat treatments. No new phases are formed in the coatings during sintering, indicating that Gd–Sc coating has excellent phase stability at 1400 ℃.

Fig. 9 XRD patterns of Gd–Sc coatings after different heat treatment time.

The surface morphologies of Gd–Sc coatings after heat treatments at 1400 ℃ are shown in Fig. 10. During the first 100 h heat treatment, the coating surface morphologies have little change indicative of excellent sintering resistance. Prolonging the heat treatment to 200 h, many micro-cracks disappear and some large cracks appear, and in the enlarged image (Fig. 10(d)), one can found that the grains have some growth. This indicates that the coating experiences some sintering during long-term heat treatment at 1400 ℃, but the sintering degree is not severe, and the coating almost keeps its original morphology. Additionally, the porosity values of heat-treated coatings (20, 50, 100, and 200 h) are 10.7%, 10.19%, 9.25%, and 8.19%, respectively. This suggests that the porosity of the coating decreases gradually with the extension of heat treatment time.

Fig. 10 Surface morphologies of Gd–Sc coatings after heat treatment at 1400 ℃ for (a) 20 h, (b) 50 h, (c) 100 h, and (d) 200 h.

The fracture surface morphology of Gd–Sc coatings after heat treatments at 1400 ℃ are shown in Fig. 11. It can be seen that the layered structure can be clearly observed in the coatings after 20 h, 50 h, and 100 h heat treatments. When the heat treatment time is extended to 200 h, the lamellar structure is not obvious, microcracks and pores are closed, and some vertical cracks begin to appear, which indicates that the coating turns to sintering. The reason for the vertical cracks may be that sufficient temperature and time provide driving force for the growth of grains during heat treatment. At the beginning of sintering, grains contact with each other, resulting in sintering neck, and microcracks and voids gradually heal; with the extension of time to the later stage of sintering, the micro-cracks and voids disappear, which reduces the strain tolerance and thermal insulation of the coating. The thermal stress accumulated during long-term heat treatment could not be released through micro-cracks and voids, resulting in stress concentration, which results in cracks during the cooling phase. This would not benefit the thermal shock resistance, corrosion resistance, or other properties of the coating, and greatly reduces the service life of the coating.

Fig. 11 Fracture surface morphologies of Gd–Sc coatings after heat treatment at 1400 ℃ for (a) 20 h, (b) 50 h, (c) 100 h, and (d) 200 h.

3. 4 Thermal cycling behavior of Gd–Sc TBCs and Gd–Sc/YSZ DCL TBCs

The macroscopic morphology evolution of Gd–Sc TBCs and Gd–Sc/YSZ DCL TBCs during thermal cycling tests is shown in Fig. 12. Both types of TBCs spalled from the edge. After 75 and 215 thermal cycles, the spallation area of Gd–Sc TBCs and Gd–Sc/YSZ DCL TBCs reaches 20% of the total area, respectively. The superalloy substrates become black, which indicates that substrate oxidation takes place during the thermal cycling test. By comparison, Gd–Sc/YSZ DCL TBCs exhibit much longer lifetime than that of Gd–Sc TBCs, revealing that double-layer design could significantly improve the thermal shock resistance of TBCs.

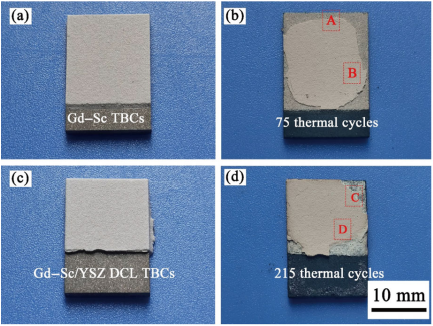

Fig. 12 Macroscopic morphology evolution of (a, b) Gd–Sc TBCs and (c, d) Gd–Sc/YSZ DCL TBCs during thermal cycling tests.

The XRD patterns of the Gd–Sc TBCs and Gd–Sc/YSZ DCL TBCs after thermal cycling tests are shown in Fig. 13. During the tests, Gd–Sc coatings have no phase decomposition, indicating that the coatings have excellent phase stability. AlNi₃ is detected in the Gd–Sc TBCs after 75 thermal cycles, which is the component of the bonding coating ^[63,64]. It could be presumed that some regions of Gd–Sc coating have spalled off, leaving the bond coat outside. After 215 thermal cycles, t'-ZrO₂ and NiO are detected in the Gd–Sc/YSZ DCL TBCs. This indicates that the spallation may occur near the bond coat, causing the TGO being detected.

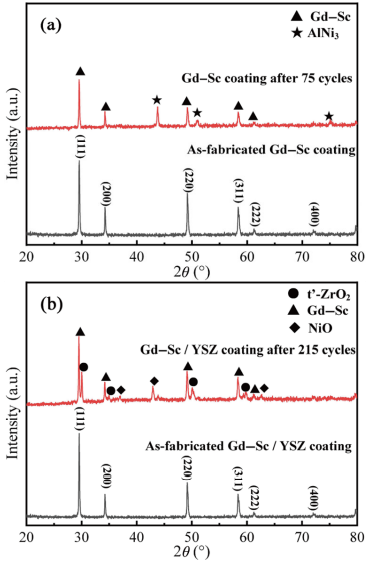

Fig. 13 XRD patterns of (a) Gd–Sc TBCs and (b) Gd–Sc/YSZ DCL TBCs after thermal cycling tests.

The spalling edge region and adjacent region of Gd–Sc TBCs and Gd–Sc/YSZ DCL TBCs are marked as A, B, C, and D, respectively, as shown in Figs. 12(b) and 12(d). Figure 14(a) shows the cross-sectional morphology of region A. After 75 thermal cycles, the Gd–Sc coating has spalled, and there is a large delamination crack in the coating. The cross-sectional morphology of region B is shown in Fig. 14(b). It can be seen that the coating delamination starts from the region near the bond coat, and the thickness of TGO is ~5 μm. It has been reported that Gd₂Zr₂O₇ can react with TGO during heat treatment, which causes stress growth and crack formation at the interface between Gd₂Zr₂O₇ coating and the bond coat ^[25,65]. For Gd–Sc coating, it also has large possibility to react with TGO, resulting in delamination crack in the coating region near the bond coat. However, it is difficult to observe the reaction products, which may be due to the small amount. Additionally, although Gd–Sc has improved toughness compared with Gd₂Zr₂O₇, its toughness is still not high enough to resist the thermal stress generated in the thermal cycle process, which inevitably leads to the formation of cracks in the Gd–Sc coating.

Fig. 14 Cross-sectional microstructures of regions (a) A and (b) B of Gd–Sc TBCs after 75 thermal cycles.

Figure 15(a) shows the cross-sectional microstructure of region C. After 215 thermal cycles, the interface between Gd–Sc and YSZ coatings is well bonded, without any defect, and both coating maintains good structural integrity. However, a larger delamination crack forms in the YSZ coating, above which the coatings are spalled. The cross-sectional morphology of region D is shown in Fig. 15(b). Although the coatings here are not spalled, some delamination cracks can be found in the YSZ coating, which could cause coating spallation like Fig. 15(a) by further thermal shock. The EDS line scanning of the interface between Gd–Sc and YSZ coatings is shown in Fig. 15(c). It could be found that Gd and Sc elements do not diffuse into YSZ coating. This indicates that the Gd–Sc coating maintains good phase stability during thermal cycling test, which is also consistent with the results of the DSC. At the interface between the YSZ coating and the bond coat, some dark contrast products are observed, which are denoted as E. EDS analysis results show that the product is mainly composed of Ni, Al, O, and a small amount of Cr. Combined with the XRD results, we can determine that the products in this region are mainly NiO, as well as some Cr and Al oxides, which is the component of TGO.

Fig. 15 Cross-sectional microstructures of regions (a) C and (b) D of Gd–Sc/YSZ DCL TBCs after 215 thermal cycles. (c) EDS line scanning of the interface between Gd–Sc and YSZ coating.

Based on the results of SEM and EDS, the failure mechanisms of Gd–Sc/YSZ DCL TBCs could be analyzed as follows. Since the bottom and side of substrate are not covered with the coating, and the thickness of the bond coat is thin, which results in serious oxidation of the alloy substrates and bond coat during thermal cycling. The thickness of the TGO has increased to ~15 μm with a larger volume expansion, thereby producing a large stress concentration near the oxidation product, resulting in the initiation and propagation of cracks, which lead to the YSZ coating cracking. Note that Gd–Sc coating still maintains good structural integrity and the interface with YSZ coating is intact. This is because the doping of Sc improves the toughness and TEC, and reduces the Young’s modulus, which ensures the tolerance in the process of thermal cycle, and has a good thermal match with YSZ. YSZ coating plays a good buffer role during thermal cycling, and prevents the reaction of Gd–Sc with the bond coat to form GdAlO₃ phase.

Additionally, Gd–Sc/YSZ DCL TBCs have a thicker ceramic layer and a thinner bond coat than Gd–Sc TBCs. It has been reported that the thermal shock resistance of TBCs decreases with the increase of ceramic coat thickness ^[66]. A thin bond coat can lead to premature oxidation during the thermal cycle, resulting in the premature failure of the coating ^[67]. Generally speaking, Gd–Sc/YSZ DCL TBCs should have a lower thermal cycling life in theory due to a thicker ceramic layer and a thinner bond coat. However, the thermal cycling life of Gd–Sc/YSZ DCL TBCs is still three times that of Gd–Sc TBCs, which indicates that Gd–Sc/YSZ DCL TBCs have excellent thermal shock resistance.

Thermal cycling life is an important index to evaluate the practical performance of TBCs. Long thermal cycle life is more suitable for TBC candidates. There are many factors that affect the thermal cycle life, such as cooling rate, temperature, high-temperature dwell time, and so on. Under similar experimental conditions, the thermal cycling life of La₂Zr₂O₇/YSZ-TBC is 160 times, GdPO₄/YSZ-TBC is 70 times, and (La_0.8Eu_0.2)₂Zr₂O₇/YSZ-TBC is 32 times ^[68–70]. The thermal cycling life of these new thermal barrier coatings is less than that of Gd–Sc/YSZ DCL TBCs. In particular, compared with Gd₂Zr₂O₇, the thermal cycling life is increased by 55% ^[71]. Therefore, Gd–Sc/YSZ TBCs have excellent thermal shock resistance and good application prospects in the newly developed thermal barrier coating materials.

4 Conclusions

In this work, the first-principles method is used to study the solid solution mechanisms of Sc atoms in Gd₂Zr₂O₇ lattice. The variation of mechanical and thermophysical properties of Sc-doped Gd₂Zr₂O₇ (Gd–Sc) with the Sc content is also investigated. Based on theoretical calculation results, the Sc doping content was optimized. Then, Gd–Sc TBCs and Gd–Sc/YSZ TBCs were produced by air plasma spraying, and the phase composition, microstructure, sintering behavior, and thermal cycling performance of the coatings were investigated. Following conclusions can be drawn.

When the content of Sc is 5.88 at%, Sc atoms mainly occupy the interstitial sites in the Gd₂Zr₂O₇ lattice because the formation energy of interstitial doping is significantly lower than that of substitution doping. The variation trend of the lattice constant shows that the Sc interstitial concentration might be less than 11.11 at%. After that, Gd would be gradually replaced by Sc with the increase of the doping content.

Compared with Gd₂Zr₂O₇, Gd–Sc has lower Young’s modulus and Pugh’s indicator (G/B) and a higher Poisson ratio (σ) suggesting better thermal shock resistance and higher toughness. At a doping level of 16.67 at% Sc, Gd–Sc exhibited the lowest G/B and the highest σ indicative of the highest toughness. With the increase of the Sc content, the Debye temperature and thermal conductivity have similar variation trends, which have a significant decrease when doping 5.88 at% Sc, and then increase slightly followed by a decrease with further doping. When the Sc content exceeds 16.67 at%, the decreasing trend of Debye temperature and thermal conductivity slow down. Therefore, the Sc doping content in Gd₂Zr₂O₇ is optimized to be 16.67 at%.

Gd–Sc coatings maintain excellent phase and structural stability after heat treatment at 1400 ℃ for 100 h. The thermal shock resistance of Gd–Sc/YSZ DCL TBCs is better than that of Gd–Sc TBCs. Due to the improvement in the toughness and TEC and the decrease in Young’s modulus, Gd–Sc coatings have good structural integrity and excellent matching with YSZ coating during thermal cycling. In addition, YSZ coating plays a good buffer role during thermal cycling and prevents the reaction of Gd–Sc with the bond coat. Gd–Sc coatings reveal excellent thermal shock resistance and sintering resistance, which has a promising application prospect.
