Effect of pyrolytic carbon interphase on mechanical properties of mini T800-C/SiC composites

Abstract: The effect of pyrolytic carbon (PyC) thickness on the tensile property of mini T800 carbon fiber reinforced SiC matrix composites (C/SiC) was studied. PyC interphase was prepared by chemical vapor infiltration (CVI) process using C₃H₆–Ar as gas source, the PyC thickness was adjusted from 0 to 400 nm, and then the SiC matrix was prepared by CVI process using methyltrichlorosilane (MTS)–H₂–Ar as precursor and gas source. The results showed that the tensile strength of mini T800-C/SiC increased first and then decreased with the increase of the PyC thickness. When the thickness of PyC was 100 nm, the average strength reached the maximum value of 393 ± 70 MPa. The Weibull modulus increased from 2.0 to 8.06 with the increase of PyC thickness, and the larger the Weibull modulus, the smaller the dispersion, which indicated that the regulation of PyC thickness was conducive to improve tensile properties.

Keywords: T800 carbon fiber; C/SiC; pyrolytic carbon (PyC) interphase; tensile strength; Weibull modulus

1 Introduction

Continuous carbon fiber reinforced silicon carbide matrix composite (C/SiC) has been widely used in aviation, aerospace, and high-speed braking due to its advantages of low density, high temperature resistance, high specific strength, and high specific modulus ^[1–4]. The USA and Europe have successfully applied C/SiC composites in the fields of thermal protection system ^[5,6], aerospace propulsion system ^[7], and optical system ^[8].

The property of carbon fiber is important for the mechanical properties of C/SiC. At present, the widely used C/SiC composites are mostly reinforced with T300 carbon fiber. Compared with T300 carbon fiber, the employment of high strength carbon fiber like T800 carbon fiber is beneficial to further improve the mechanical properties of composites. Some studies have been carried out for high strength fiber reinforced C/SiC composite materials. For T300 carbon fiber, the Young’s modulus is 230 GPa and the coefficient of thermal expansion (CTE) is –0.41 × 10^-6 K^-1. Compared with T300 carbon fiber, T800 carbon fiber has higher Young’s modulus (300 GPa) and CTE (–0.56 × 10–6 K^-1), and thus the modulus and CTE match between T800 carbon fiber and silicon carbide (SiC) matrix that Young’s modulus is 450 GPa and the CTE is 4.6 × 10–6 K^-1[9,10], should be re-adjusted by the interphase optimization. At present, the main research is focused on the properties of composites, and it lacks the study on the interphase optimization of T800-C/SiC.

The interphase is crucial to tailor the modulus and CTE match between fiber and matrix. The interphase plays the role of crack deflection and the load transfer from matrix to fiber, and these two roles are usually balanced to optimize the strength and toughness. Pyrolytic carbon (PyC) has a common component with carbon fiber and SiC matrix, and has high chemical stability, so there is no interfacial chemical reaction in the high temperature chemical environment of ceramic matrix composite (CMC) preparation. In addition, PyC has a low modulus (35 GPa), which can effectively alleviate the thermal expansion mismatch during high temperature preparation, and the shear strength of PyC is low, which is beneficial to control the interfacial bonding strength. The PyC is the most widely used interphase material for CMC ^[11]. As Refs. ^[12,13] reported, for T300-C/SiC, the PyC interphase thickness and crystallization were usually adjusted, and the optimized thickness was around 200 nm. For the T800 carbon fiber, it has a different microstructure with T300 carbon fiber. The T300 carbon fiber has obvious skin core structure, and T800 carbon fiber has a uniform and dense structure ^[14], leading to the interphase with different required thicknesses. So, it is essential to carry out the study on the optimization of interphase thickness for T800-C/SiC.

In this work, the mini T800-C/SiC was employed, and the PyC interphase thickness was adjusted by controlling the deposition time. The effect of PyC interphase thickness on the tensile properties of mini T800-C/SiC composites were characterized.

2 Experimental

2. 1 Materials preparation

T800 carbon fibers (QZ5526, Weihai Tuozhan Fiber Co., Ltd., China) were employed, and the main performance indicators are shown in Table 1.

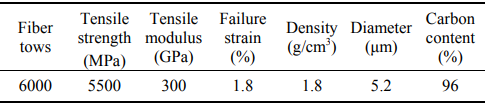

Table 1 Parameters of T800 carbon fiber

First, a single continuous carbon fiber bundle should be wound on the mold with appropriate strength to ensure that the fiber bundle was stretched without being damaged. PyC interphase was prepared on carbon fiber surface by chemical vapor infiltration (CVI) process using C₃H₆–Ar as gas source and then the PyC interphase was heat-treated at 1800 ℃ for 1 h under vacuum. The infiltration time of PyC interphase was chosen as 0, 40, 80, and 160 h, to control the interphase thickness. After that, SiC matrix was deposited by CVI using methyltrichlorosilane (MTS)–Ar–H2 as precursor at 3 kPa. After the infiltration of SiC matrix for 160 h, the mini T800-C/SiC composites with different thicknesses of PyC interphase were obtained. According to the different infiltration time of PyC interphase, the samples were named as samples S0, S1, S2, and S3, respectively.

2. 2 Characterization

The as-prepared sample for the tensile testing is shown in Fig. 1, which was prepared by gluing the mini T800-C/SiC specimen into the grip area with epoxy resin. The tensile strengths of samples were measured by mechanical testing machine (Instron-3345, Instron Corporation, USA) at room temperature, and the span and loading rate were 50 mm and 0.2 mm/min according to ASTM D3379-75, respectively. For each assemble, 16 specimens were tested. The morphology and fracture surface of samples were observed with scanning electron microscope (SEM, S-4700, Hitachi, Japan).

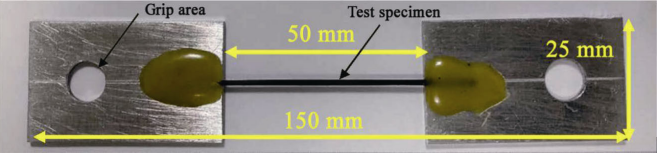

Fig. 1 Macroscopic image of mini T800-C/SiC sample.

3 Results and discussion

3.1 Tensile strength analysis

Figure 2 presents the SEM images of samples S0, S1, S2, and S3. As shown in Fig. 2(a), the SiC matrix was directly deposited on the surface of carbon fiber for sample S0. The PyC interphase was prepared between the SiC matrix and carbon fiber, and the interphase thicknesses of samples S1, S2, and S3 were 100, 200, and 400 nm, respectively, as shown in Figs. 2(b)–2(d). The SEM observations for interphase thicknesses had been carried out on all samples, and the arithmetic mean value of interphase thickness was calculated. It should be noted that, to make the data more concise and clear, the arithmetic mean value of interphase was normalized.

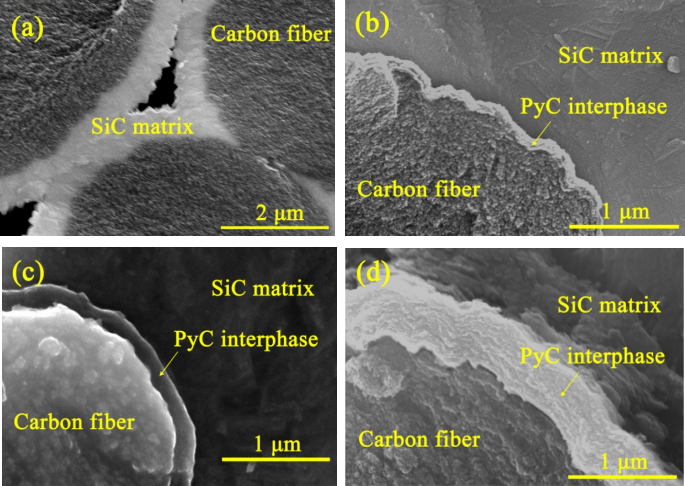

Fig. 2 Microstructure of mini T800-C/SiC composite with different thicknesses of PyC interface: (a) sample S0, (b) sample S1, (c) sample S2, and (d) sample S3.

The tensile properties of mini-C/SiC composite were tested, and the stress–strain curves are shown in Fig. 3. Without interphase to deflect the crack in sample S0, the matrix failed because of the penetration of the main crack, and brittle fracture occurred at low stresses. The curves of samples S1–S3 are nonlinear, revealing tough rupture. Samples S1, S2, and S3 had a certain thickness of interphase, the cracks can be deflected, and the interphase debonding and sliding occurred, so the samples showed “pseudo plastic” fracture.

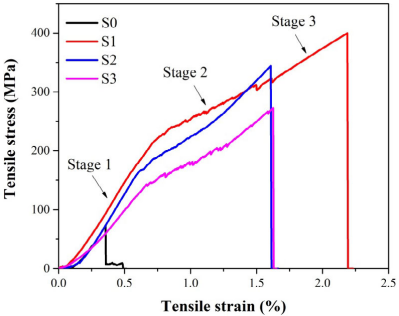

Fig. 3 Stress–strain curve of mini T800-C/SiC composites with different interphase thicknesses.

The stress–strain curves of samples S1, S2, and S3 were divided into three stages. The first stage was the linear elastic stage. In this stage, the elastic deformation of the fiber and the matrix occurred simultaneously, and the tangent modulus of the curve remained unchanged. The second stage was nonlinear. A critical transition point after the linear elastic stage is the matrix cracking stress value. The critical transition points on the stress–strain curves of samples S1, S2, and S3 were calculated, and the corresponding matrix cracking stresses were 212, 183, and 144 MPa, respectively. The results showed that with the increase of the PyC thickness, the matrix cracking stress decreased.

After the critical transition point, the matrix cracks increased continuously. Because of the existence of weak PyC interphase between matrix and fiber, the cracks deflected and then the interphase de-bonding and sliding occured. With the increase of stress, the crack density increased, and gradually reached saturation, and the matrix stress no longer increased with the external load. Because of the thermal mismatch between the fiber and the matrix, there were cracks existing in the matrix of mini T800-C/SiC. In the first stage, the stress was too small for the crack to propagate, but in the second stage, the cracks began to expand and propagate when the stress exceeded the matrix cracking stress, and the tangent modulus of the curve decreased gradually due to the proliferation of matrix cracks, showing zigzag shape. In the third stage, the stress–strain curve showed a linear rise again. After the second stage, the applied stress began to be mainly carried by the fibers, and the tangent modulus of the curve increased again and remained unchanged. With the increase of the stress, the fibers began to fracture until the material failed.

3. 2 Tensile strength distribution analysis

Ceramic matrix composites are brittle materials; for fully reflecting its strength characteristics, it is necessary to use random distribution to describe the strength. The two-parameter Weibull distribution function can better describe the statistical distribution of strength for fiber reinforced composites. In order to obtain the dispersion and average tensile strength values of mini-C/SiC composite materials, it was firstly assumed that the tensile strength distribution was in line with the Weibull distribution function, and the distribution of tensile strength was calculated and analyzed using the two-parameter Weibull model ^[15–17]. Then Kolmogorov–Smirnov non-parametric test (K–S test) method was used to test the assumed distribution ^[18]. The two-parameter Weibull distribution function is generally expressed as

where F(σ) is the failure probability; V is the effective test volume of the sample; V₀ is the reference volume; σ_i is the applied stress; σ₀ is the size parameter (MPa), which is the characteristic strength; m is the shape parameter, which is the Weibull modulus used to characterize the dispersion degree of the strength, and the lower the dispersion of the strength, the larger the Weibull modulus.

Set V₀ equal to V, the simplified Weibull distribution function is as follows:

The parameters of Weibull distribution function are solved by graphic method. Two logarithmic transformations are performed on both sides of Eq. (2), and the following equation is obtained:

where F is the empirical distribution of the data. Generally speaking, the empirical distribution function (EDF) of random samples is defined as a ladder function, as shown in the following equation:

where n is the number of specimens and i is the serial number of specimens.

The lnσ_i and lnln[1/(1–F)] are plotted as abscissa and ordinate, respectively, and linear regression is carried out. The slope of the graph is the estimated value of m, and the intercept is the estimated value of –mlnσ₀. Thus, the estimated value of characteristic strength σ₀ can be calculated.

The average tensile strength can be expressed by the expected value of Weibull distribution, as shown in Eq. (5):

where Γ is the gamma function.

According to the above methods, the tensile strength of all the samples was calculated and analyzed. The Weibull modulus m and the expected value of Weibull distribution E(σ) are obtained. Figure 4 shows the parameters calculated by the two-parameter Weibull distribution graphic method, and the calculation results of all samples are listed in Table 2.

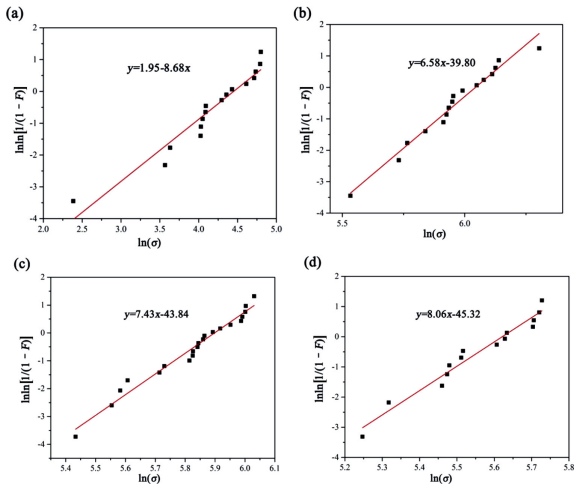

Fig. 4 Two-parameter Weibull distribution graphic method for parameter calculation: (a) sample S0, (b) sample S1, (c) sample S2, and (d) sample S3.

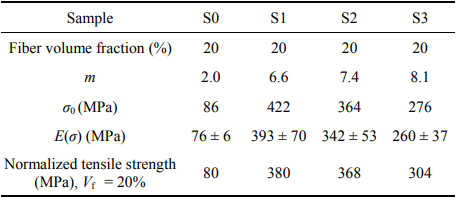

Table 2 Weibull distribution parameters and average strength of mini T800-C/SiC

The fiber volume fraction has a great influence on the mechanical properties of the composite. In order to eliminate the influence of different fiber volume fraction on the tensile strength, it is necessary to normalize the obtained tensile strength value and unify the fiber volume fraction to 20 vol%. The normalization of the tensile strength for samples were 80, 380, 368, and 304 MPa.

It can be seen that the change of the average tensile strength and the normalized average tensile strength were similar. Both tensile strength increased first and then decreased with the increase of the PyC interface phase thickness. As shown in Table 2, the average tensile strength and the normalized average tensile strength of sample S1 were the maximum, and the Weibull modulus increased with the increase of the PyC thickness. When the PyC thickness increased from 0 to 400 nm, the Weibull modulus increased from 2.0 to 8.1, which means that the dispersion of material strength was getting smaller and smaller. Thus, it can be seen that increasing the PyC interface phase thickness is conducive to improving the mechanical property stability of mini T800-C/SiC.

The fracture morphology of mini T800-C/SiC composites with different interphase thicknesses are shown in Fig. 5. The fracture morphology of sample S0 is very even (Fig. 5(a)), indicating the typical brittle fracture. Although there were several monofilament fibers extending a long distance from the fracture, the monofilament fibers extending was not pulled out under stress, but lack of matrix phase restraint. The typical brittle fracture also could be seen in Fig. 6(a). As shown in Figs. 5(b)–5(d), it can be seen that the fibers show multi-stage pullout for samples S1, S2, and S3. Moreover, the pull-out length of the fiber increases with the increase of the interphase thickness. According to the shear lag model ^[19]:

where L_c is the critical fiber length (L_c/2 is the fiber pull-out length), d_f is the fiber diameter, σ_fu is the fiber breaking strength, and τ is the interface shear strength. It can be seen that with the increase of the interphase thickness, the interfacial shear strength decreases, the critical fiber length increases, and the fiber pull-out length increases ^[20]. The results showed that the interfacial shear strength of sample S3 is lower than that of sample S1, which indicated that the too thick interfacial shear strength was too low to transfer the load to the fiber, which made the mechanical properties of mini T800-C/SiC composite decline.

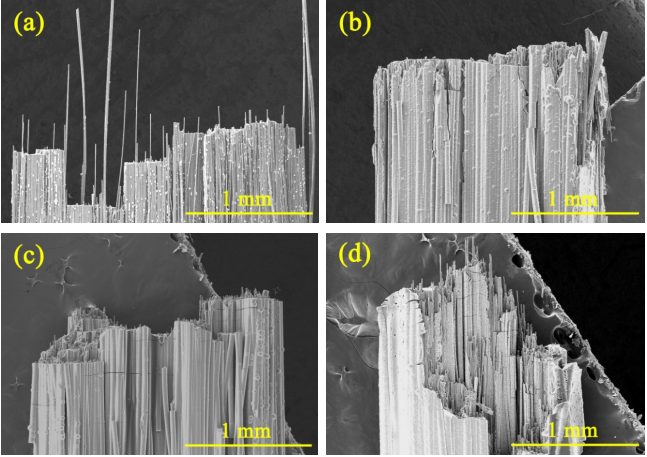

Fig. 5 Fracture morphologies of mini T800-C/SiC composite: (a) sample S0, (b) sample S1, sample S2, and (d) sample S3.

After the test, the crack spacing of each fracture specimen was measured. For each kind of specimen, nearly 30 crack spacings had been counted, and then the statistical value was given. All the morphologies were typical crack spacing of each specimen in Fig. 5. The surface morphologies of mini T800-C/SiC composite were shown in Fig. 6. A large number of transverse matrix cracks on the surface of S1, S2, and S3 were perpendicular to the loading direction. As can be seen from Fig. 6(a), no matrix crack was observed in sample S0 except the main fracture crack. In the tensile process of mini T800-C/SiC, the equidistant crack would be formed on the SiC matrix. From Figs. 6(b)–6(d), the spacing of saturated cracks of samples S1, S2, and S3 were about 94, 106, and 185 μm, respectively. With the increase of the interphase thickness, the interface bonding became weaker, and the saturated crack spacing of the matrix was larger, which is consistent with the longer length of pull-out ^[21].

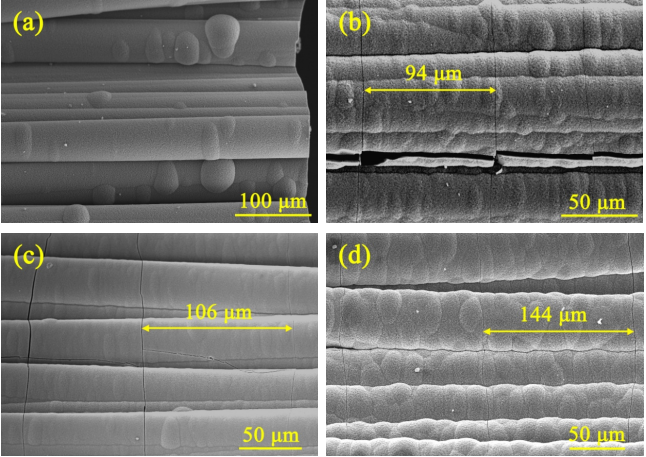

Fig. 6 Surface morphologies of mini T800-C/SiC composite: (a) sample S0, (b) sample S1, (c) sample S2, and (d) sample S3.

An optimized thickness for the PyC interphase plays two roles: The first one is to deflect the cracks, and the second one is to transfer the load from the matrix to fiber. So, the optimization of PyC thickness is a balance between these two roles. As a summary, for the mini T800-C/SiC, it needs the appropriate PyC thickness to play the strengthening role of fibers. When the PyC thickness reaches 100 nm, it can effectively deflect the cracks, and also it has higher interfacial shear strength than that of samples S2 and S3, so it can be more effective to transfer the load, leading to the highest tensile strength in all four samples.

The Weibull modulus is related to the stress distribution in the fiber bundles. The thermal residual stress always exists due to the thermal mismatch between carbon fiber and SiC matrix. There are 6000 filament in one bundle, and with the increase of PyC thickness, it can make more uniform stress distribution on every filament. So, the dispersion degree decreased, leading to the increase of Weibull modulus from 2.0 to 8.1.

4 Conclusions

The mini T800-C/SiC composites with different thicknesses of PyC interphase were prepared by CVI with T800 carbon fiber as reinforcement. The test results were analyzed by Weibull distribution model. The results showed that with the increase of PyC interphase thickness, the tensile strength first increased and then decreased; when the thickness of PyC interface was 100 nm, the average strength of the composite reached the maximum, which is 393 MPa. The Weibull modulus increased from 2.0 to 8.06 with the increase of the thickness of the PyC interface layer, which reduced the dispersion degree of the tensile strength of the mini-C/SiC composites. With the increase of the interphase thickness, the interface bonding was weaker, the pull-out length of the fiber was longer and the saturated crack spacing of the matrix was larger, leading to the decrease of the tensile strength.
