Effects of surface roughness on CMAS corrosion behavior for thermal barrier coating applications

Abstract: Calcium-magnesium-alumina-silicate (CMAS) corrosion is an important cause for thermal barrier coating (TBC) failure, which has attracted increased attentions. In this study, some thermal barrier coating (TBC) materials including YSZ (yttria partially stabilized zirconia), GdPO₄, and LaPO₄ were prepared into bulks, and the effects of their surface roughness on wettability and spreading characteristics of molten CMAS were investigated. As-fabricated and polished bulks with different surface roughness were exposed to CMAS corrosion at 1250 °C for 1 and 4 h, following by macro and micro observations. Results revealed that compared with the as-fabricated bulks, molten CMAS on the polished samples had lower wettability and a smaller spreading area, mainly attributable to the reduced capillary force to drive the melt spreading. Meanwhile, GdPO₄ and LaPO₄ bulks exhibited lower CMAS wettability than YSZ bulk. It is thus considered that reducing the surface roughness is beneficial to CMAS corrosion resistance of TBCs.

Keywords: thermal barrier coating (TBC); calcium–magnesium–alumina–silicate (CMAS); surface roughness; wetting; spreading

1 Introduction

Thermal barrier coating (TBC) is one of the core technologies of modern aero engines. With the development of aviation industry, the thrust-weight ratio of aero engines continues to increase, leading to an increase in the operating temperature of TBCs ^[1–4]. And the most commonly used ceramic top coat material for TBCs is yttria partially stabilized zirconia (YSZ) ^[2]. In actual operating environments, fine particulate matters in desert or from volcanic eruption are ingested into engines, which could be transformed into molten glass at high temperatures. Although the geographic location and operating conditions of aero engines are different, the composition of glassy substances is basically close, mainly consisting of CaO, MgO, Al₂O₃, SiO₂ (CMAS) ^[5–8].

Traditional YSZ materials have difficulties in resisting to CMAS attack, so scientists and technicians are trying to develop new types of TBC materials, and some studies have shown that the rare earth phosphates with monazite structure exhibit excellent resistance to CMAS corrosion ^[9–12]. Guo et al. prepared a series of rare earth phosphates LnPO₄ (NdPO₄, SmPO₄, and GdPO₄) bulks and studied the penetration depth of CMAS in the bulks at 1250 ℃, comparing it with the CMAS corrosion resistance of YSZ bulks. The results show that the three rare earth phosphates have better CMAS corrosion resistance than YSZ, among which CMAS has the smallest penetration depth in GdPO₄ bulk, indicating that GdPO₄ has the best CMAS corrosion resistance ^[11].

During aero engine operation, CMAS is deposited on TBC surface firstly, and then melts, wets, and infiltrates into the coating at high temperatures, which causes phase transformation of the coating and also mdestroys the coating microstructure, resulting in premature failure of TBCs ^[2,13–15]. In the corrosion process of CMAS to TBCs, the wetting of molten CMAS plays an important role, which needs special attention and study.

Wetting is a phenomenon of liquid diffusion on solid surface caused by the interaction between molecules. The ability of liquid diffusion on solid surface is called wettability ^[16]. The definition of contact angle (θ) is as follows: through the three-phase contact point, make a tangent to the liquid–gas interface, and the angle between the tangent line of liquid–gas interface and solid–liquid interface is the contact angle. Contact angle (θ) is used to characterize the wettability: when 0° < θ < 90°, solid surface is hydrophilic; when 90° < θ < 180°, solid surface is hydrophobic. In particular, when θ = 0°, it is called complete wetting, and with θ = 180°, it is called completely non-wetting; when the liquid is in equilibrium on the solid surface, the contact angle is called the equilibrium wetting angle ^[16–18]. Factors affecting wetting include liquid surface tension, solid surface energy, and surface roughness.

The wetting behavior of CMAS on YSZ coating has been studied before. Zhang et al. ^[19] investigated the wetting and infiltration behavior of CMAS towards YSZ coating deposited by plasma spray physical vapor. The results showed that CMAS undergoes a short-time spread-out process, which is mainly attributed to the suddenly decreased surface tension of molten CMAS. Kang et al. ^[20] tailored three coatings with different surface microstructures: polished, as-sprayed, and femtosecond laser ablated, and studied the wetting behavior of molten CMAS on them. Results showed that compared with the other two coatings, the femtosecond laser ablated coating exhibits a slight decrease in contact angle, contact diameter, droplet height, and droplet volume. Some scholars studied the wetting behavior of CMAS on YSZ coating through first-principles calculation, and indicated that oxygen ion distribution on the coating surface is a key factor affecting the wettability and the corrosion behavior of CMAS to the coating ^[21,22]. The wetting behavior of CMAS on newly developed TBC material has also been studied. Qu et al. ^[23] indicated that CMAS has a larger contact angle and a slower spreading speed on the LaTi₂Al₉O₁₉ bulk than that on the YSZ bulk at the same condition.

As mentioned above, CMAS corrosion behavior of TBC materials or coatings has been studied by considering the wetting behavior of molten CMAS, but the influence of surface characteristics (such as roughness) on molten CMAS wettability and spreading characteristics is rarely involved. According to the study of Wenzel ^[24], the equilibrium wetting angle of liquid on rough surface can be expressed as follows:

cosθ_r  = W_rcosθ₀ (1)

where θ_r is the equilibrium wetting angle of the liquid on the rough surface, W_r is the ratio of the actual surface area to the nominal surface area, and θ₀ is the equilibrium wetting angle of the liquid on the smooth surface. Therefore, the surface roughness plays an importance role in the wettability and spreading behavior of molten CMAS on TBCs. In this study, some TBC materials such as YSZ, GdPO₄, and LaPO₄ are prepared into bulks with various roughnesses, and the wettability and spreading characteristics of molten CMAS on these bulks are investigated, aiming to clarifying the effect of the surface roughness on the CMAS corrosion behavior for TBC applications.

2 Experimental procedure

2. 1 Preparation of YSZ, GdPO₄, and LaPO₄ powders

All the powders in this experiment were synthesized by a chemical co-precipitation and calcination method. The synthesis process of YSZ (7 wt% Y₂O₃ doped ZrO₂) powders was as follows: the appropriate quantity of Y₂O₃ powders and ZrOCl₂·8H₂O were dissolved in nitric acid and deionized water, respectively. The two solutions were mixed and added drop by drop to excess ammonia water (pH > 12) to obtain gel-like precipitate. The obtained precipitate was washed with deionized water and absolute ethanol, and filtered until the filtrate was clear (pH ≈ 7). Then the filter cake was dried at 80 ℃ for 12 h, calcined at 900 ℃ for 4 h, and ground and screened to obtain YSZ powders. LaPO₄ powder synthesis processes are similar to YSZ powders: La₂O₃ was dissolved in nitric acid and then mixed with (NH₄)₂HPO₄, followed by adding drop by drop to excess ammonia water (pH > 12) through three-necked bottle, until the reaction was finished with gel-like precipitate. The obtained precipitate was washed with deionized water and absolute ethanol, and filtered until the filtrate was clear (pH ≈ 7). GdPO₄ powder synthesis processes are as follows: Gd₂O₃ and excess H₃PO₄ were mixed and stirred until the reaction was completed, and the suspension was washed with deionized water and absolute ethanol, and filtered until the filtrate was clear. Then the filter cakes (GdPO₄ and LaPO₄) were dried at 80 ℃ for 12 h, calcined at 900 ℃ for 4 h, and ground and sieved to obtain GdPO₄ and LaPO₄ powders.

2. 2 Preparation of YSZ, GdPO₄, and LaPO₄ bulks

The prepared powders were put into the compression mold and pressed. The pressure was set at 150 MPa, and the diameter of the bulks was about 2 cm. Then, the pressed YSZ bulks were placed in a muffle furnace and sintered at 1300 ℃ for 10 h, the pressed GdPO₄ and LaPO₄ bulks were sintered at 1500 ℃ for 10 h, and the diameter of the bulks was about 1.8 cm after sintering. Each type of bulk was processed into two states: the as-fabricated and polished. The polished pieces were manually ground with 400#, 800#, 1200#, 1500#, and 3000# silicon carbide sandpaper (Eagle brand), followed by polishing on a rotary polishing machine (MP-2B) with velvet polishing cloth for 5–10 min. After the above steps, the polished bulks of each material were obtained, and the standard of manual grinding process is that the grinded surface scratch completely covers the surface scratch grinded before.

2. 3 Preparation of CMAS glass

In this study, the composition of CMAS was 33CaO–9MgO–13Al₂O₃–45SiO₂ (mol%), which was determined by referring to the chemical composition of the glass deposit on the surface of the blade ^[8]. The raw materials were carefully weighed in the appropriate molar ratio and suspended in deionized water, followed by planetary ball milling (QM-3SP4) for 6 h at a speed of 400 rpm until the raw materials were mixed sufficiently. Then the resultant suspension was dried at 200 ℃ for 10 h, dehydrated at 800℃ for 6 h, and kept at 1550℃ for 2 h. After that, the CMAS glass was obtained by pouring the molten CMAS onto a copper plate in water, in order to ensure the purity of CMAS glass; the bottom of CMAS glass, which contacted with copper plate directly, was removed by grinding. At last, CMAS powders were obtained by grinding and sieving.

To evenly cover the CMAS powders onto bulk surface, a 400# sieve and a paper sheet with a hole (diameter of the hole is 0.8 cm) were used. Firstly, a certain amount of CMAS was carefully weighed by an analytical balance and put into a 400# sieve, and the bulk was covered by the paper sheet, followed by placing the sieve on the top of the bulk and shaking the sieve at a constant speed until the CMAS powder density on bulk reaches to 10 mg/cm². The bulks with CMAS deposits were heat-treated in a box electric furnace (SX-1600 ) at 1250 for 1 and 4 h.

2. 4 Preparation of cross sections

The preparation process of polished cross sections was as follows: the sample corroded by CMAS was put into a mold after being fixed by the fixture, the prepared curing solution (mass ratio of resin : curing agent = 2 : 1) was evenly poured into the mold, and then the pattern inlaid with samples was obtained after condensing for 2 h. The piece inlaid with sample was manually ground with 400#, 800#, 1200#, 1500#, and 3000# silicon carbide sandpaper (Eagle brand), followed by polishing on a rotary polishing machine (MP-2B) with velvet polishing cloth. After the above steps, the polished cross section of each material was obtained.

2. 5 Characterizations

In the experiment, the surface roughness was measured by an atomic force microscope (AFM; afm5500, AGILENT, USA) using Silicon AFM Probe (Tap190-G Budget Sensors) whose force constant and resonant frequency are 48 N/m and 190 kHz, respectively. The AFM worked at a horizontal scanning length and a scanning rate of 0.7 lines/s under the normal temperature and pressure. And the X-ray diffractometer (XRD; Bruker D8 Advanced, Germany) equipped with Cu Kα radiation was employed in characterizing the phase composition of the materials and reaction products. The scanning range was 10°–80° and the scanning rate was 0.2 (°)/s. After the scanning, the XRD patterns were recorded. Scanning electron microscopy (SEM; TDCLS4800, Hitachi Ltd., Japan) equipped with energy dispersive spectrometer (EDS; IE 350) was used to observe the surface morphology and cross-section microstructure.

3 Results and discussion

AFM images of the surface of GdPO₄ bulks are shown in Fig. 1. Comparing the 3D surface topography and 2D height map of polished bulk (Fig. 1(a)) and that of as-fabricated bulk (Fig. 1(b)), it can be found that the surface roughness difference between the two bulks is obvious. The surface state of YSZ and LaPO₄ bulks is similar to that of GdPO₄, so they are not repeated. According to the measurement results, the surface roughness of polished YSZ, GdPO₄, and LaPO₄ bulks is 0.14, 0.18, and 0.17 μm, respectively; and that of as-fabricated YSZ, GdPO₄, and LaPO₄ bulks is 1.16, 0.98, and 1.11 μm, respectively. That is to say, the roughness of polished bulk is 0.14–0.18 μm approximately, and that of as-fabricated bulk is about 0.98–1.12 μm.

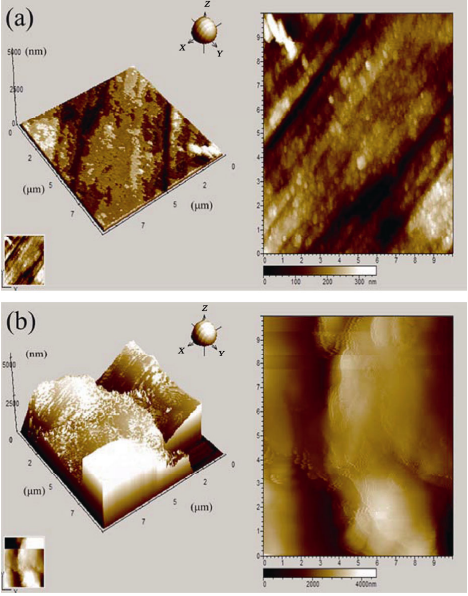

Fig. 1 AFM images of the surfaces of polished (a) and as-fabricated (b) GdPO₄ bulks.

3. 1 Effects of roughness on wetting behavior of molten CMAS on YSZ bulks

Figure 2 shows macroscopic morphologies of polished and as-fabricated YSZ bulks exposed to CMAS at 1250℃ for 1 and 4 h. After heat treatment at 1250 ℃ for 1 h, obvious residual CMAS glass can be observed on the surfaces of the two bulks, and the spreading area of CMAS on the polished bulk (the area highlighted by a red line in Fig. 2(a)) is smaller than that on the as-fabricated bulk (the area highlighted by a black line in Fig. 2(b)). It could be inferred that the wettability of molten CMAS on the polished surface is lower. To verify the inference, the cross-section images of CMAS/YSZ bulks were collected, and the contact angles were measured in the following section. As shown in Figs. 2(c) and 2(d), little residual CMAS glass could be observed on surfaces of both polished and as-fabricated YSZ bulk after heat treatment for 4 h, indicating that the penetration of molten CMAS into the YSZ bulk increases with time.

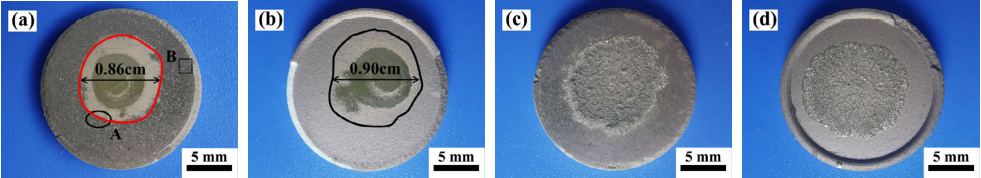

Fig. 2 Macroscopic morphologies of polished (a, c) and as-fabricated (b, d) YSZ bulks exposed to CMAS at 1250℃ for 1 h (a, b) and 4 h (c, d).

Regions A and B in Fig. 2(a) are observed by SEM at a higher magnification, and their images are shown in Figs. 3(a) and 3(b), respectively. As shown in Fig. 3(a), spherical monoclinic (m) ZrO₂ and residual CMAS glass can be clearly observed at the spreading edge of molten CMAS after heat treatment at 1250 ℃ for 1 h, which means that the phase transformation of YSZ in this region has occurred due to CMAS corrosion. The results of element analysis of the marked areas 1 and 2 in Fig. 3(a) are also shown in the figure, from which it can be found that besides Zr and Y elements, Ca element is also contained in region of the spherical m-ZrO₂. It is indicated that the dissolution of YSZ may occur in the process of CMAS corroding YSZ. In Fig. 3(b), the surface morphology is still compact without spherical m-ZrO₂ and residual CMAS, suggesting that CMAS corrosion only occurs in the center of YSZ bulk.

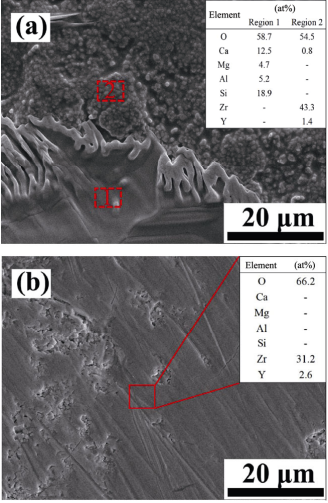

Fig. 3 SEM images of CMAS/polished YSZ bulk: (a) and (b) corresponding to regions A and B in Fig. 2(a), respectively.

Many researchers have reported that YSZ is unable to resist corrosion by CMAS, and the mechanisms are complex ^[6–8]. One of the main reasons for the failure of YSZ caused by CMAS is the transformation of ZrO₂ from metastable tetragonal phase (t’-ZrO₂) to m-ZrO₂ induced by CMAS ^[8], which could be explained by a dissolution and precipitation mechanism ^[8,25,26]. At 1250℃ , CMAS melts and wets the YSZ surface firstly, and then ZrO₂ and Y₂O₃ dissolve in the CMAS at interface. Because the amount of ZrO₂ is much more abundant, ZrO₂ precipitates first from the molten CMAS. Since the solubility of Y₂O₃ in molten CMAS is high, the precipitated crystals contain very few Y₂O₃, which results in the formation of m-ZrO₂ in the cooling process on account of the lack of sufficient amounts of stabilizers (Y₂O₃). In this experiment, as mentioned above, a lot of spherical m-ZrO₂ particles are observed in the CMAS corrosion area, and Ca element is contained in the region of m-ZrO₂, which makes this mechanism confirmed.

The cross-section microstructures of polished and as-fabricated YSZ bulks after heat treatment at 1250 ℃ for 1 h are shown in Fig. 4. According to the definition of contact angle ^[16,17], the contact angle is measured by the direct measurement method, that is, with the help of SEM, the cross-section microstructure is captured, a tangent to the liquid–gas interface is made through the three-phase contact point, and the angle between the tangent line of liquid–gas interface and solid–liquid interface is measured directly. When the molten CMAS is in equilibrium on the surface of the YSZ bulk, the contact angle does not change any more. The final state after slow cooling is equal to the equilibrium state, that is to say, the contact angle of the final state is also the equilibrium wetting angle. As shown in Figs. 4(b) and 4(d), the contact angles of the CMAS/polished YSZ bulk and the CMAS/as-fabricated YSZ bulk are 10.1° (θ₁) and 7.8° (θ₂), respectively. The EDS element maps corresponding to Fig. 4(d) are shown in Fig. 4(e), where Ca, Mg, Al, Si elements are observed in the matrix of YSZ, indicating that the YSZ bulk has been corroded by CMAS in the CMAS wetting area after heat treatment at 1250 for 1 h.

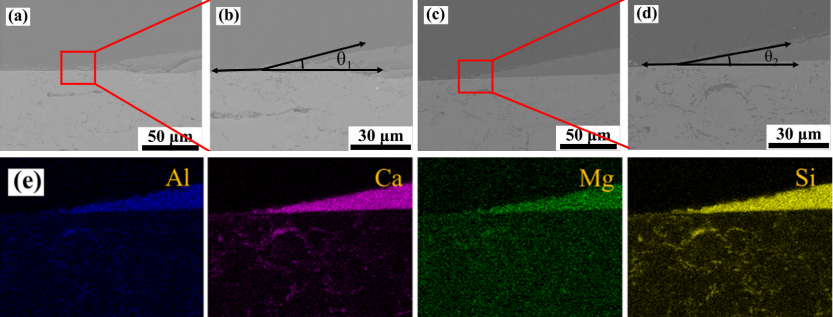

Fig. 4 Cross-section microstructures of polished (a, b) and as-fabricated (c, d) YSZ bulks exposed to CMAS at 1250℃ for 1 h; (e) EDS element maps corresponding to (d).

According to the research of Yost ^[27,28], a rough surface can be regarded as a three-dimensional network structure composed of interconnected micro V-grooves. When the liquid flows in these micro V-grooves, there is additional capillary force to drive the liquid spreading. Therefore, the greater the roughness, the better the wetting. The polished YSZ pellet lacks this threedimensional structure composed of micro V-grooves, which makes it more difficult for the molten CMAS to wet its surface.

Besides, on the basis of Wenzel theory ^[24] about the influence of roughness on liquid wettability, a rough surface increases the actual surface area of liquid wetting. It can be concluded that if the wettability is good (θ₀ < 90°) on a smooth surface, it will be better on a rough surface; if the wettability is bad (θ₀ > 90°) on a smooth surface, the wettability on a rough surface will be worse. The wetting angle of molten CMAS on the polished YSZ bulk surfaces is less than 90°; therefore, according to the Wenzel law, the wetting angle of molten CMAS on as-fabricated bulks would be smaller. As it has been shown in Fig. 4, the wetting angle of molten CMAS on the as-fabricated YSZ bulk is 7.8°, lower than 10.1°, which is consistent with the Wenzel law.

3. 2 Effects of surface roughness on wetting behavior of molten CMAS on GdPO₄ and LaPO₄ bulks

Figure 5 shows the macroscopic morphologies of polished and as-fabricated GdPO₄ bulks with CMAS deposits at 1250℃ for 1 and 4 h. Comparing Figs. 5(a) and 5(b), it is observed that the residual CMAS on the polished bulk is more than that on the as-fabricated bulk after heat treatment at 1250℃ for 1 h. The difference in the residual CMAS on the polished and as-fabricated GdPO₄ bulk shown in Figs. 5(a) and 5(b) is so significant that the contact angle difference between CMAS/polished GdPO₄ bulk and CMAS/as-fabricated GdPO₄ bulk could also be easily inferred, and cross section images are also collected in the following discussion to verify the inference. With the extension of heat treatment time to 4 h (Figs. 5(c) and 5(d)), the residual CMAS on the surfaces of both bulks significantly decreases, and the residual melt is hardly observed on the surface of the as-fabricated bulk. Furthermore, comparing Fig. 5 to Fig. 2, it is obvious that residual CMAS on the surface of the GdPO₄ bulk surface is far more than that on the YSZ bulk for the same heat treatment time, meaning that GdPO₄ has a higher resistance to CMAS penetration, which could be confirmed in the next discussion.

Fig. 5 Macroscopic morphologies of polished (a, c) and as-fabricated (b, d) GdPO4 bulks exposed to CMAS at 1250℃ for 1 h (a, b) and 4 h (c, d).

Figures 6(a) and 6(b) are SEM images corresponding to regions C and D in Figs. 5(a) and 5(b), respectively. It is clear that residual CMAS and short rod or block crystals can be observed at the spreading edge of molten CMAS on the surface of the polished GdPO₄ bulk, as shown in Fig. 6(a). The precise element composition of these short rod or block crystals cannot be obtained by EDS analysis, making it hard to determine what they are, while the element ratio of region 3 in Fig. 6(a) is close to the composition of CMAS, suggesting that the edge of CMAS/polished GdPO₄ bulk is covered with molten CMAS. However, acicular crystals (Fig. 6(b)) are observed at the edge of CMAS/as-fabricated GdPO₄ bulk, and the EDS analysis of region 4 shows that the acicular crystals contain Ca, Gd, P, Si, O elements, so the XRD analysis of CMAS/as-fabricated GdPO₄ bulk was carried out and the pattern is shown in Fig. 7. The diffraction peaks of CaAl₂Si₂O₈ (PDF#41-1486), MgAl₂O₄ (PDF#47-0254), and P–Si apatite phases are detected. Combing the EDS result and the XRD pattern, it can be determined that the acicular crystals are P–Si apatite phase, which is consistent with previous research ^{[10,12,29,30]}.

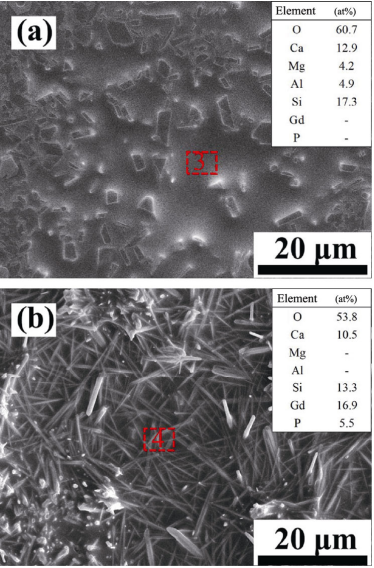

Fig. 6 Surface SEM images of GdPO4 bulks exposed to CMAS at 1250℃ for 1 h. (a) and (b) shows the regions of C and D highlighted by black squares in Fig. 5, respectively. EDS results of regions 1 and 2 are present in the table.

The main formation mechanism of P–Si apatite phase could be due to dissolution re-precipitation ^[31]. When the surface temperature exceeds 1250℃ , CMAS begins to melt, wet, and spread on the bulk surface. At the same time, GdPO₄ is dissolved in the molten CMAS, causing Gd and P elements to diffuse into CMAS. When the content of Gd and P in CMAS reaches to the critical value, P–Si apatite precipitates into a crystalline form. Because the diffusion rate of Gd and P in molten CMAS is different, the distribution of Gd and P in molten CMAS is inhomogeneous, which causes different atomic ratios of Gd and P in different regions, so non-stoichiometric P–Si apatite is formed.

The microstructure of polished and as-fabricated GdPO₄ bulks after heat treatment at 1250℃ for 1 h is shown in Figs. 8(a) and 8(b), respectively. The contact angles of CMAS/polished GdPO₄ bulk and CMAS/as-fabricated GdPO₄ bulk are directly measured according to the angle measurement method described in Section 3.1. The contact angle of CMAS/polished GdPO₄ bulk (θ₁) is 69.6°, and that of CMAS/asfabricated GdPO₄ bulk (θ₂) is 41.0°. The cross-section image of CMAS/as-fabricated GdPO₄ at a higher magnification is shown in Fig. 8(c), from which block crystals and acicular crystals can be observed. According to the element analysis of region 5 in the figure and the XRD pattern in Fig. 7, it can be determined the block crystals are CaAl₂Si₂O₈. As for the acicular crystals of region 6, as mentioned above, they are P–Si apatite phases. The map scanning is carried out for Fig. 8(b), and the results are shown in Fig. 8(d). Different from the results in Fig. 4(e), it could be seen that little CMAS has penetrated into the GdPO₄ bulk, and on the basis of previous research, it is these CaAl₂Si₂O₈ and P–Si apatite phases that hinder the further penetration of molten CMAS ^[29,30].

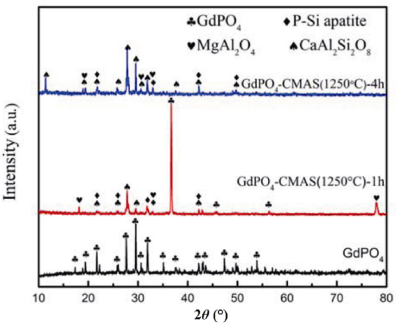

Fig. 7 XRD patterns of the GdPO₄ bulk and the bulks with CMAS deposits subjected to 1250℃ for 1 and 4 h.

Fig. 8 Cross-section microstructures of polished (a) and as-fabricated (b) GdPO₄ bulks exposed to CMAS at 1250℃ for 1 h; (c) cross-section image of CMAS/as-fabricated GdPO₄ at a higher magnification; (e) EDS element maps corresponding to (b).

The wetting behavior of CMAS on GdPO₄ is similar to that of YSZ, which shows that it is more difficult to wet the polished bulk surface. This can also be explained by the three-dimensional mesh theory of Yost ^[27,28] and Wenzel law ^[24], which has been mentioned before.

Figure 9(a) shows the macroscopic morphology of the as-fabricated LaPO₄ corroded by CMAS at 1250 ℃ for 1 h. It can be seen that the molten CMAS has spread on the surface. Figures 9(b) and 9(c) show the macroscopic morphologies of the polished LaPO₄ bulk after heat treatment at 1250℃ for 1 and 4 h, respectively. As shown in Figs. 9(a) and 9(b), in the same heat treatment time (1 h), CMAS spreads on the as-fabricated pellet, but agglomerates at the center of the polished one. Comparing Figs. 9(b) and 9(c), it can be found that with the extension of heat duration to 4 h, the gathered CMAS at the center has spread to some extent.

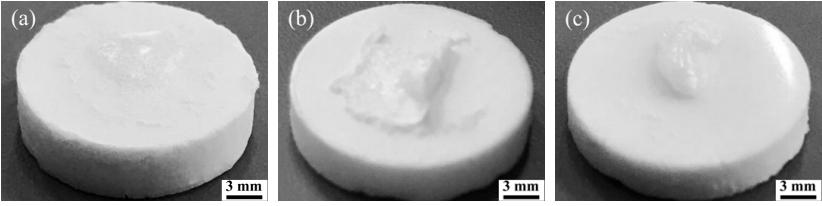

Fig. 9 Morphologies of the CMAS-covered LaPO₄ bulks after heat treatment at 1250℃ : (a) as-fabricated bulk for 1 h; (b) and (c) the polished bulks for 1 and 4 h, respectively.

The microstructure of the as-fabricated LaPO₄ bulk after heat treatment at 1250℃ for 1 h is shown in Figs. 10(a) and 10(b). According to the angle measurement method described in Section 3.1, the contact angle of CMAS/as-fabricated LaPO₄ bulk (θ₁) is measured as 28.6°, which is also greater than that of CMAS/as-fabricated YSZ bulk. The element maps corresponding to Fig. 10(a) are shown in Fig. 10(c), where it could be seen that CMAS has not completely penetrated into the LaPO₄ bulk. Similarly to GdPO₄, that is also attributed to the hindrance of CaAl₂Si₂O₈ and P–Si apatite ^[9,29,30].

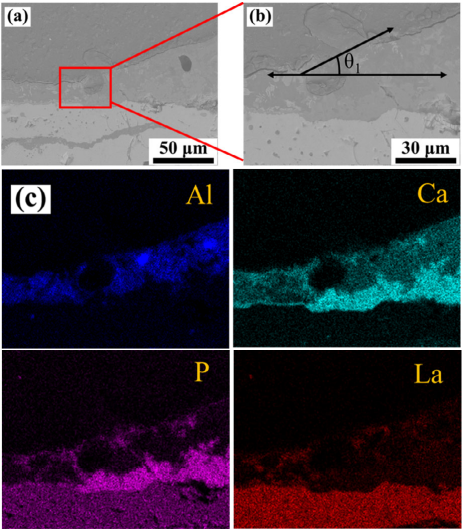

Fig. 10 Cross-section microstructures of as-fabricated (a, b) LaPO₄ bulks exposed to CMAS at 1250℃ for 1 h; (c) EDS element maps corresponding to (a).

The wettability of CMAS on the surfaces of YSZ bulk and rare earth phosphates with monazite structure (LaPO₄, GdPO₄) bulk is compared. As shown in Fig. 4, Fig. 8, and Fig. 10, the contact angle of CMAS/YSZ is smaller than that of CMAS/GdPO₄ both on polished and as-fabricated bulk surfaces, and the contact angle of CMAS/as-fabricated YSZ bulk is also smaller than that of CMAS/as-fabricated LaPO₄ bulk. The reason for the difference is the difference in the material surface energy. Under the same solid surface roughness, the greater the surface energy, the easier the solid would be wetted ^[16]. Wang et al. ^[32] and Li et al. ^[33] calculated surface energy of LaPO₄ and YSZ by first principles, and the results show that the minimum surface energy of LaPO₄ is 0.61 J/m² on (110) crystal face, and the minimum surface energy of YSZ is 0.75 J/m² on (010) crystal face. In other words, the surface energy of YSZ and LaPO₄ bulk can be approximately 0.75 and 0.61 J/m² respectively. Although no scholar has calculated the surface energy of GdPO₄ crystal surface, both GdPO₄ and LaPO₄ belong to rare earth phosphates with the monazite structure. Therefore, it can be reasonably inferred that the surface energy of GdPO₄ is also less than that of YSZ, which can explain that the wettability of CMAS on the surface of GdPO₄ bulk is lower than that on the surface of YSZ bulk.

In this study, effects of surface roughness on CMAS wetting and spreading characteristics of YSZ, GdPO₄, and LaPO₄ pellets are investigated, and the results indicate that surface roughness has significant influence on the CMAS corrosion behavior. First, the rough surface has a three-dimensional network structure, and secondly, it increases the actual wetting area of liquid, which can promote the wetting and diffusion of molten CMAS on the pallets. In other words, destroying this three-dimensional network structure by reducing the surface roughness can alleviate CMAS wetting and spreading. This provides a novel sight for developing methods to protect TBCs from CMAS attack, that is, designing a coating with low surface roughness.

4 Conclusions

In this study, TBC materials including YSZ and rare earth phosphates (GdPO₄ and LaPO₄) are prepared into bulks, and the CMAS corrosion behavior of their as-fabricated and polished states are investigated. For YSZ and rare earth phosphates, the contact angle of the CMAS/polished bulk is larger than that of the CMAS/as-fabricated bulk, meaning that CMAS wettability on the polished bulk is lower. The different CMAS wettability on the as-fabricated and polished bulks could be attributed to the difference in their surface textures; a rough surface could be regarded as a threedimensional network structure composed of interconnected micro V-grooves, which could provide a capillary force to drive the melt spreading, and polishing destroyed this three-dimensional structure, making it more difficult for molten CMAS to wet a surface. Under the same roughness, the wettability of CMAS on the surfaces of GdPO₄ and LaPO₄ bulks is lower than that on the YSZ bulk due to the lower surface energy. In summary, it is reasonable to consider that reducing the surface roughness could help to improve the CMAS corrosion resistance of TBCs.
