Enhanced dielectric and electrocaloric properties in lead-free rod-like BCZT ceramics

Abstract: Ba_0.85Ca_0.15Zr_0.10Ti_0.90O₃ (BCZT) lead-free ceramics demonstrated excellent dielectric, ferroelectric, and piezoelectric properties at the morphotropic phase boundary (MPB). So far, to study the effect of morphological changes on dielectric and ferroelectric properties in lead-free BCZT ceramics, researchers have mostly focused on the influence of spherical grain shape change. In this study, BCZT ceramics with rod-like grains and aspect ratio of about 10 were synthesized by surfactant-assisted solvothermal route. X-ray diffraction (XRD) and selected area electron diffraction (SAED) performed at room temperature confirm the crystallization of pure perovskite with tetragonal symmetry. Scanning electron microscopy (SEM) image showed that BCZT ceramics have kept the 1D rod-like grains with an average aspect ratio of about 4. Rod-like BCZT ceramics exhibit enhanced dielectric ferroelectric (ɛ_r = 11,906, tanδ = 0.014, P_r = 6.01 μgC/cm², and E_c = 2.46 kV/cm), and electrocaloric properties (ΔT = 0.492 K and gZ = 0.289 (K·mm)/kV at 17 kV/cm) with respect to spherical BCZT ceramics. Therefore, rod-like BCZT lead-free ceramics have good potential to be used in solid-state refrigeration technology.

Keywords: lead-free Ba_0.85Ca_0.15Zr_0.10Ti_0.90O₃ (BCZT); rod-like Ba_0.85Ca_0.15Zr_0.10Ti_0.90O₃ (BCZT); dielectric; ferroelectric; electrocaloric effect

1 Introduction

Due to the constant expansion of industry, increasing living standard, and climate change, the refrigeration market has become an increasingly significant factor in energy consumption ^[1–3]. The extensive use of refrigeration is one of the major factors of excessive energy consumption leading to the exhaustion of non-renewable energy resources, and thus deepening the greenhouse effect. Hence, developing sustainable technological solutions based on promising new cooling technologies is getting increasingly important in recent years. Several efficient techniques are under development such as solar ^[4], thermoelectric ^[5], magnetocaloric ^[6], and electrocaloric cooling ^[7]. The electrocaloric effect (ECE) has recently shown great potential, as the high electric fields required for the refrigeration cycle are easier and less expensive to produce than the other fields required in competitive refrigeration techniques ^[8,9]. Giant electrocaloric effect was found in lead-based ferroelectric ceramics like Pb(Zr,Ti)O₃ (PZT) and Pb(Zr,Sn,Ti)O₃, as well as in relaxors such as Pb(Sc,Nb)O₃ and Pb(Mg_1/3Nb_2/3)O₃–PbTiO₃ (PMN–PT) ^[10–13]. However, the possible toxicity of lead-based materials limits their application in future eco-friendly cooling systems ^[3]. Correspondingly, new lead-free materials were developed recently to mimic the properties of lead-based materials ^[14–16].

Barium titanate (BaTiO₃) is usually regarded as one of potentially promising lead-free ceramics, which was the first material used to fabricate piezoelectric ceramics. It is widely employed in modern technologies such as mobile electronic devices and hybrid electrical vehicles ^[17,18]. Furthermore, BaTiO₃ is a bioceramic material without any toxic or volatile elements, and its properties can be easily tailored by site engineering ^[14,19]. However, BaTiO₃ exhibits low dielectric properties compared to lead-based materials and its dielectric constant below the Curie temperature (T_c = 393 K) rapidly drops due to the tetragonal/cubic phase transition ^[20,21]. To overcome the drawback, the Ba_1–xCa_xZr_yTi_1–yO₃ system is engineered by introducing Ca²⁺ and Zr⁴⁺ into the crystal lattice of BaTiO₃, to replace Ba²⁺ and Ti⁴⁺, respectively, with improved dielectric properties due to enhanced relaxor behavior of Ba_1–xCa_xZr_yTi_1–yO₃ ceramics ^[22–26]. Moreover, as reported by Liu and Ren ^[27], Ba_0.85Ca_0.15Zr_0.10Ti_0.90O₃(BCZT) phase exhibits interesting dielectric, ferroelectric, and piezoelectric properties at the morphotropic phase boundary (MPB), which is comparable to those of PZT ceramics ^[15].

It is well known that the electrical properties of any material are very sensitive to its morphology. Almost all published articles on BCZT ceramics studied the dielectric and ferroelectric properties of sphericalgrain-based powder ^[28–30]. Hence, to correlate the electrical and morphological properties, researchers are focusing especially on spherical grain size effect. We reported previously, the effect of grain size and grain size distribution in BCZT ceramics using surfactantassisted solvothermal processing ^[31]. We found that the nature of surfactant directly influences the grain size and grain size distribution of BCZT ceramics. The use of sodium dodecyl sulfate (SDS, NaC₁₂H₂₅SO₄) as surfactant results in highly dense ceramics with homogeneous grain distribution. However, cetyltrimethy-lammonium bromide (CTAB, C₁₉H₄₂BrN) surfactant produces BCZT ceramics with bimodal grain size distribution including coarse grains and small spherical ones.

The surfactant-assisted solvothermal synthesis provides a design of nanomaterials with specifically tailored architectures via the synthesis of nanoscale building blocks with an appropriate size and shape, and controlled orientation of the final products. Moreover, the cationic surfactant CTAB, a templating micelle molecule, is used to adjust size and morphology of nanomaterials ^[32–35]. At the best of our knowledge, there have been no other reports on the electrical studies in rod-like BCZT ceramics. In this contribution, we report the first BCZT ceramics with rod-like grains and evaluate its dielectric, ferroelectric, and electrocaloric properties.

2 Experimental

2. 1 Rod-like BCZT powder synthesis

BCZT pure nanocrystalline powder was obtained by CTAB-assisted solvothermal synthesis as reported previously by Ref. ^[31]. First, an appropriate amount of barium acetate was dissolved in glacial acetic acid. Calcium nitrate tetrahydrate and zirconyl chloride octahydrate were dissolved each alone in 2-methoxyethanol. Second, the three solutions were mixed in a two-neck round bottom flask. In the third stage, titanium ^(IV) isopropoxide (Ti(OⁱPr)₄) was added synchronously dropwise to the reaction medium using an isobaric dropping funnel.

Unlike the previously Ref. ^[31], to control BCZT microstructure, a different concentration (30 mM) of CTAB surfactant was introduced. The obtained solution was transferred to a 30 mL teflon-lined stainless-steel autoclave at 180 ℃ in an oven for 12 h. After the reaction was completed, the sealed autoclave was cooled in the air. The resulting product was washed sequentially with ethanol for several times. Then, the final product was dried at 100 ℃ for 12 h, calcined at 1000 ℃ for 4 h. Finally, BCZT powder was uniaxially pressed into pellets of diameter of about 6 mm and thickness of about 1 mm, and sintered at 1250 ℃/ 10 h for electrical measurements. For P–E loop measurements, the thickness of the sample was reduced to 0.4 mm to allow high electric field application, while the electrode area was kept to 28.26 mm².

2. 2 Characterization rod-like BCZT

The morphology of BCZT powder was investigated by a field-emission scanning electron microscope (FESEM, JEOL JSM-7600F). Crystalline structure of BCZT powder was performed by X-ray diffraction (XRD, Panalytical X-Pert Pro). The measurement has been done at room temperature employing a step angle of 0.017° in the 2θ range from 10° to 80° using a Cu Kα radiation (λ ≈ 1.540598 Å). The selected area of electronic diffraction (SAED) pattern was recorded by using a transmission electron microscope (TEM, Philips CM200). To determine the optimal calcination temperature of raw BCZT material in order to produce highly pure BCZT powder, the combined thermogravimetric and differential thermal analyses (TG-DTA, Sytram LABSYS evo) were performed at heating rate of 10 ℃/min from room temperature to 1100 ℃ in air. The resulting microstructure of BCZT sintered ceramics was analyzed by using a scanning electron microscope (SEM, Tescan VEGA3). The density of the sintered ceramics was measured by Archimedes method using deionized water as medium. A precision LCR meter (HP 4284A, 20 Hz to 1 MHz) was used to measure the dielectric properties of BCZT ceramic pellet that was electroded with silver paste in the frequency range of 100 Hz-1 MHz. The ferroelectric hysteresis loops were determined by using a ferroelectric test system (AiXACCT, TF Analyzer 3000) at a driving frequency of 1 Hz.

3 Results and discussion

3. 1 Thermal analysis and phase evolution

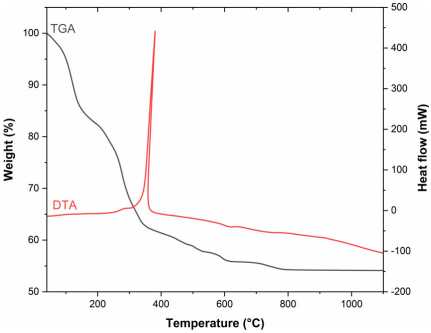

The typical thermal decomposition behavior of the BCZT raw material is shown in Fig. 1. The first weight loss at temperatures between 40 and 160 ℃ is due to desorption of physically adsorbed water (dehydration phenomena). The second weight loss in the range of 160–230 ℃ can be attributed to the chemisorbed water (dehydroxylation phenomena). The exothermic located peak at 380 ℃ is associated to the thermal decomposition of various organic compounds. The fourth loss between 580 and 800 ℃ is attributed to the formation and crystallization of BCZT phase ^[36]. Finally, the mass loss remains constant after 800 ℃. Based on these analyses, the temperature of 1000 ℃ was selected as the calcination temperature for the formation of highly pure perovskite BCZT.

Fig. 1 TG-DTA curves of BCZT raw material.

3. 2 Morphology and phase characterization of rodlike BCZT powder

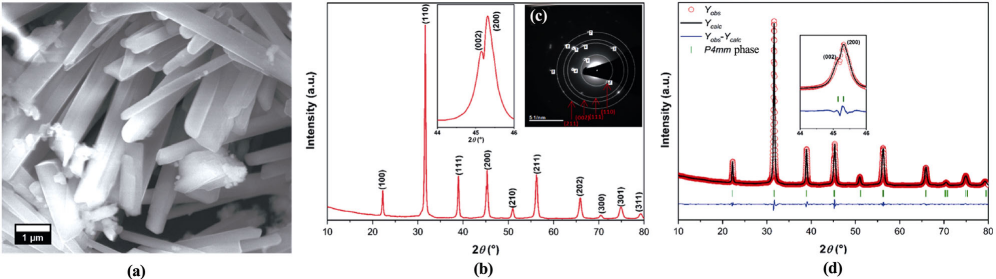

In Fig. 2(a), a FE-SEM micrograph of the elaborated BCZT powder is presented. Besides very small amount of BCZT nanoparticles that were not yet transformed into BCZT rods, mainly rod-like grains with an average diameter and length of 0.45 and 4.25 µm, respectively, are visible with the corresponding aspect ratio around 10.

The XRD pattern obtained for BCZT calcined powder is shown in Fig. 2(b). It was observed that BCZT powder was formed in a pure perovskite phase, without any trace of crystalline impurities. All diffraction peaks can be indexed based on the standard model X-ray polycrystalline tetragonal BaTiO₃ (JCPDS card No. 96-901-4669) with the space group P4mm. The characteristic tetragonal reflection (110) was observed at 2θ = 31.65°. BCZT powder has a tetragonal symmetry demonstrated by the peaks (002) and (200) splitting ^[37–40]. Insets of Fig. 2 clearly illustrate the splitting of these peaks in the 2θ range of 44°–46°. Figure 2(c) depicts SAED patterns of BCZT calcined powder. The d-spacings calculated from the measured ring diameters (i.e., 2.834, 2.313, 1.999, and 1.634 Å), correspond to (110), (111), (002), and (211) planes, respectively. These results are in good agreement with those obtained by XRD.

Fig. 2 (a) FE-SEM micrograph, (b) XRD, (c) SAED patterns, and (d) Rietveld refinement of BCZT powder calcined at 1000 ℃/4 h.

Phase analysis of BCZT calcined powder was performed in the light of P4mm space group as shown in Fig. 2(d). The refinement performed by FullProf Suite software indicates that the diffraction data of BCZT powder collected at room temperature mainly has a tetragonal phase (P4mm). Y_obs and Y_calc correspond to the observed and calculated data respectively. In the Rietveld refinements, Ba and Ca ions are supposed to share the same crystallographic A-site of the BCZT perovskite structure. Similarly, Ti and Zr ions are positioned at the same B-site ^[40]. Table 1 indicates the lattice parameters, atomic positions, and space group obtained after refinement. These parameters are comparable to those reported in Refs. ^[40,41].

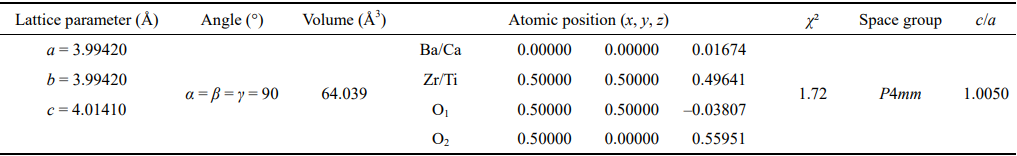

Table 1 Structural parameters obtained from Rietveld refinement of BCZT calcined powder

The degree of tetragonality (c/a) at room temperature of BCZT is 1.0050. This value is in a good agreement with those of Liu and Ren ^[27] and Praveen et al. ^[40] which are 1.0050 and 1.0049, respectively.

3. 3 Density measurements of rod-like BCZT ceramic

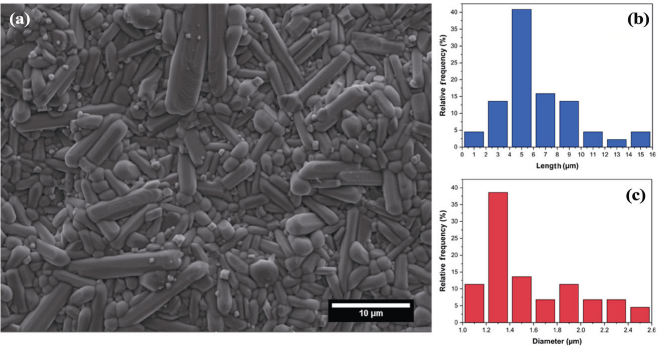

Figure 3 displays SEM micrograph and the corresponding statistical distribution of length and diameter of BCZT ceramics sintered at 1250 ℃/10 h. The microstructure reveals tightly bonded and well-defined rod-like grains with no obvious porosity, corresponding to a high bulk density of 5.50 g/cm³ (95% of the theoretical density). The average length and diameter of the rod-like grains are 5.2 and 1.35 µm, respectively. Hence, an average aspect ratio is of 4.

Fig. 3 (a) SEM micrograph and corresponding statistical distribution of (b) length and (c) diameter of BCZT ceramics sintered at 1250 ℃/10 h.

3. 4 Dielectric and ferroelectric properties of rod-like BCZT ceramics

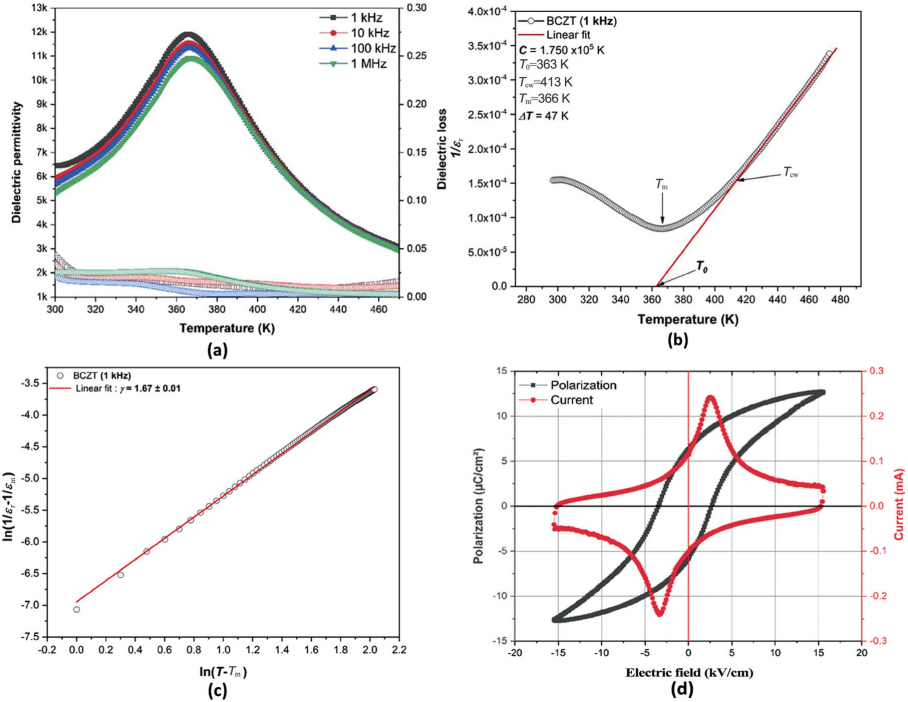

Figure 4(a) displays the temperature-dependence of the dielectric constant (ε_r) and the dielectric loss (tanδ) of rod-like BCZT ceramics at various frequencies from room temperature to 473 K. The dielectric constant increases with increasing temperature and reaches the maximum at Curie temperature (T_c). A broad anomaly at 366 K associated to the tetragonal–cubic (T–C) phase transition was observed ^[31,42,43]. The broad maximum observed is due to the overlap of several ferroelectric and non-ferroelectric regions ^[44]. Furthermore, with increasing frequency, the maximum dielectric constant decreases and Curie temperature shifts toward higher temperatures, indicating a typical relaxor frequency dispersion ^[45,46].

The dielectric constant of normal ferroelectrics above Tc follows the Curie–Weiss law, as described by Eq. (1). The reciprocal dielectric constant was plotted as a function of temperature (T) at 1 kHz and fitted using Curie–Weiss law to evaluate this phase transition:

where ε_r is the real part of dielectric constant, T0 is the Curie–Weiss temperature, and C is the Curie–Weiss constant.

The plot of the inverse dielectric constant vs. temperature at 1 kHz is shown in Fig. 4(b). The fitting results obtained by Eq. (1) are listed in Table 2. It was found that the real part of ε_r of BCZT ceramics deviates from the Curie–Weiss law above the Curie temperature. The deviations ΔT_m as defined by Eq. (2):

ΔT_m =T_cw - T_m  (2)

where T_cw refers to the temperature from which ε_r starts to follow the Curie–Weiss law, and T_m denotes the temperature at which ε_r value reaches the maximum. The estimated value of deviations ΔT_m is 47 K.

To further confirm the degree of diffuseness in the BCZT ceramics, a modified empirical expression proposed by Uchino and Nomura ^[47] is used, which is given in Eq. (3):

where ε_r and ε_m are the real part of the dielectric constant and its maximum value, respectively, and γ(degree of diffuse transitions) and C are constants. For an ideal relaxor ferroelectric γ = 2, while for a normal ferroelectric γ =1 and the system follows the Curie–Weiss law ^[48].

Figure 4(c) depicts the linear fitting plot of ln(1/ε_r –1/ε_m) vs. ln(T – T_m) at 1 kHz for BCZT ceramics. After curve fitting by using Eq. (3), the value obtained for γ at 1 kHz in BCZT ceramics is 1.67.

Fig. 4 (a) Temperature-dependence of dielectric constant and dielectric loss, (b, c) plots of Curie–Weiss relation and modified Curie–Weiss law to determine slope (γ), and (d) P–E and I–E plots of BCZT ceramics.

Previously, we reported the synthesis of BCZT ceramics using CTAB surfactant at different concentrations ^[31]. It was found that the small spheroidal grains (60–1000 nm) were distributed at the boundaries of coarse grains and occupied the pores created during the sintering to create high dense ceramics with a relative density (D_r) of about 95.2% equal to that of BCZT ceramics with rod-like grains. The dielectric constant and the dielectric loss of BCZT ceramics with spherical grains were found to be 7584 and 0.0158, respectively (Table 2). However, the dielectric constant and the dielectric loss in BCZT ceramics with rod-like grains reached 11,906 and 0.014, respectively. Hence, tailoring BCZT ceramics with large aspect ratio could enhance its dielectric properties ^[49,50].

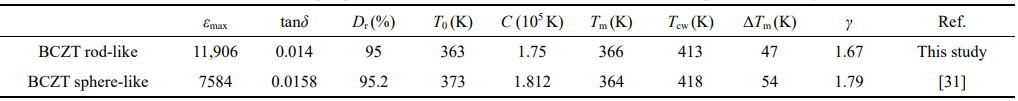

Table 2 Dielectric properties of BCZT ceramics with rod-like and spherical-like grains

P–E and I–E plots of BCZT ceramics at room temperature are represented in Fig. 4(d). It displays a slim P–E hysteresis loop with remnant polarization (P_r) of 6.01 µC/cm² and coercive field (E_c) of 2.46 kV/cm. The I–E curve shows two distinct peaks around the coercive fields, indicating the domain switching phenomena ^[51]. The appearance of a domain switching current peak (Fig. 4(d)), with an application of electric field confirms the ferroelectric nature of BCZT ceramics. The Ec can be evaluated from the polarization vs. electric field (P–E) hysteresis loop or by the current vs. electric field (I–E) curve ^[52].

3. 5 Electrocaloric effect in rod-like BCZT ceramics

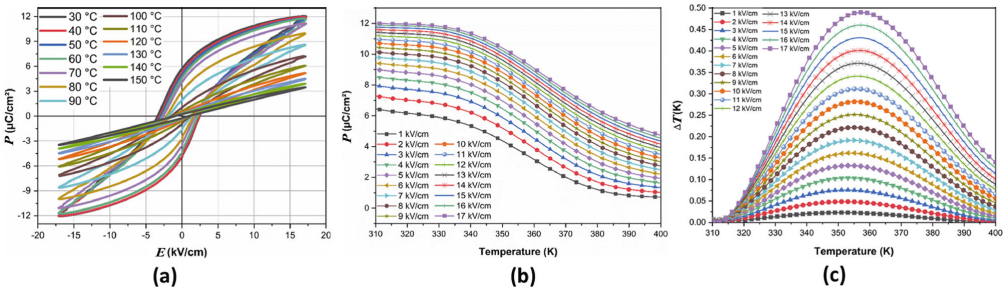

To evaluate the effect of grain shape tailoring on the electrocaloric effect (ECE) in the rod-like BCZT ceramics, Fig. 5(a) depicts P–E hysteresis loops registered at different temperatures at the driving frequency of 1 Hz, as in our recent paper Ref. ^[25]. The same frequency (1 Hz) was kept to avoid any influence of the frequency as reported by Cheng et al. ^[53]. With increasing the temperature, the remnant polarization decreases continuously due to the disappearance of ferroelectric domains ^[54].

After recording P–E hysteresis loops as a function of the temperature, we perform a seven-order polynomial fitting by considering only the upper branches of these curves (Fig. 5(a)). Then, the variation of the polarization vs. the temperature at every fixed applied electric field can be deduced (Fig. 5(b)). It was noticed that the polarization decreases slowly from room temperature, then drops rapidly with the temperature around T_c.

Fig. 5 Temperature-dependence of (a) P–E loops, (b) electric polarization, and (c) the reversible adiabatic electrocaloric temperature change (ΔT) of rod-like BCZT ceramics under various applied electric fields.

ΔT was calculated by indirect method based on Maxwell equation that leads to Eq. (4).

where ρ and C_p are the mass density and the specific heat of the material, respectively. The value of C_p (0.378 J/(g·K)) was taken from Ref. ^[26].

Figure 5(c) shows the temperature-dependence of ΔT. Each curve corresponds to a fixed applied electric field and evidences the ferroelectric–paraelectric phase transition with temperature increasing. The highest value obtained for ΔT was 0.492 K at 17 kV/cm at the tetragonal–cubic transition around 360 K. It is worth noting that a further increase in the applied external electric field could enhance the ΔT value of the material since the P–E loops have not reached saturation yet. Commonly, the electrocaloric responsivity (ξ = ΔT/ΔE) is used for more suitable evaluation of the electrocaloric effect of materials. The obtained ΔT value at 17 kV/cm corresponds to the electrocaloric responsivity of ξ = 0.289 (K·mm)/kV.

Our findings are compared with previously published results on BCZT ceramics in Table 3 in which the electrocaloric properties (ΔT and ξ) of BCZT lead-free ceramics with different compositions and shapes are listed. It should be pointed out that ΔT value in the studied rod-like BCZT ceramics was found larger than other reported values in literature ^[22,37]. However, its electrocaloric responsivity is among the average values. This can be attributed to the elaboration method, the chemical composition, atomic rate, and site occupancy in the structure. It is well known that the nature of the precursors used for the syntheses often plays a key role in determining the shape and size of the nanomaterials. The nucleation and growth of BCZT from the molecular, ionic, or oxide titanium/zirconium precursors in the presence of barium/calcium carbonates or salts are often dictated by the nature of the cubic crystal structure, which results in the formation of BCZT nanocrystals with spherical or cubic shapes with aspect ratio of about 1 ^[55]. However, in this study, the CTAB surfactant was used as directing agent to produce BCZT ceramics with rod-like grains.

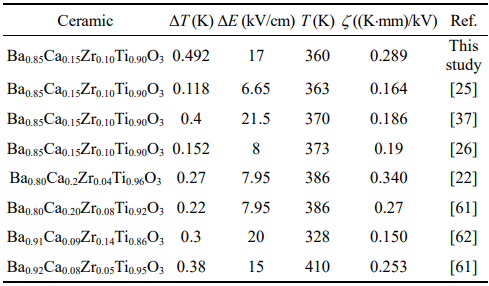

Table 3 Comparison of the electrocaloric properties of rod-like BCZT ceramics with other lead-free BCZT ceramics reported in literature

The ECE is associated with the polarization, phenomenological coefficient, multiple polar states, as well as the breakdown electric field, etc. ^[56–59]. Indeed, these physical properties are strongly dependent on features and morphologies of dielectric materials such as grain size, size distribution, and aspect ratio. As reported by Zhang et al. ^[60], the electrocaloric properties in Ba_0.67Sr_0.33TiO₃/Poly (vinylidene fluorideertrifluoroethylene-ter-chlorofluoroethylene) (BST/P (VDF-TrFE-CFE)) nanocomposites by embedding BST fillers with nanoparticles, cubes, rods, and nanowires in morphology are closely related to the aspect ratio of the ceramic BST nanofillers ^[60]. They found that fillers with high aspect ratio exhibit much higher breakdown and greater ECE. Likewise, Tang et al. ^[49] demonstrated that using high-aspect-ratio of BaTiO₃ (BT) nanowires is an effective way to control and improve the dielectric performance of (BT/PVDF) nanocomposites. Analogically, the enhanced electrocaloric effect in our sample could be attributed to high aspect ratio (4) of BCZT rod-like ceramics as compared with other reported BCZT samples exhibiting almost spherical grains (aspect ratio ≈ 1). Thus, BCZT ceramics with rod-like grains have good potential to be used for the application in eco-friendly solid-state cooling devices.

4 Conclusions

In this study, lead-free rod-like BCZT ceramics have been successfully prepared by CTAB-assisted solvothermal processing. XRD and SAED revealed that rod-like BCZT ceramics exhibit pure perovskite phase with tetragonal symmetry and a remarkable c/a of 1.0050 and a high density (95%). SEM micrograph depicted that BCZT ceramics are self-assembled into rod-like grain with an average length and diameter of 5.2 and 1.35 µm, respectively, and therefore with an aspect ratio of 4. Rod-like BCZT ceramics demonstrated enhanced dielectric (ε_r = 11,906, tanδ = 0.014) and ferroelectric (P_r = 6.01 µC/cm² and E_c = 2.46 kV/cm) properties compared to BCZT ceramics with spherical grains. Likewise, around 360 K, ΔT and responsivity ξ were found to be 0.492 K and 0.289 (K·mm)/kV, respectively, which are larger than those found in the reported BCZT ceramics. Therefore, lead-free BCZT ceramics with high aspect ratio could be a potential candidate for cooling material in novel environmentally friendly solid-state cooling devices.
